Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)

Page 1
background image

Power Window Motor: Service and Repair
Lock Actuator

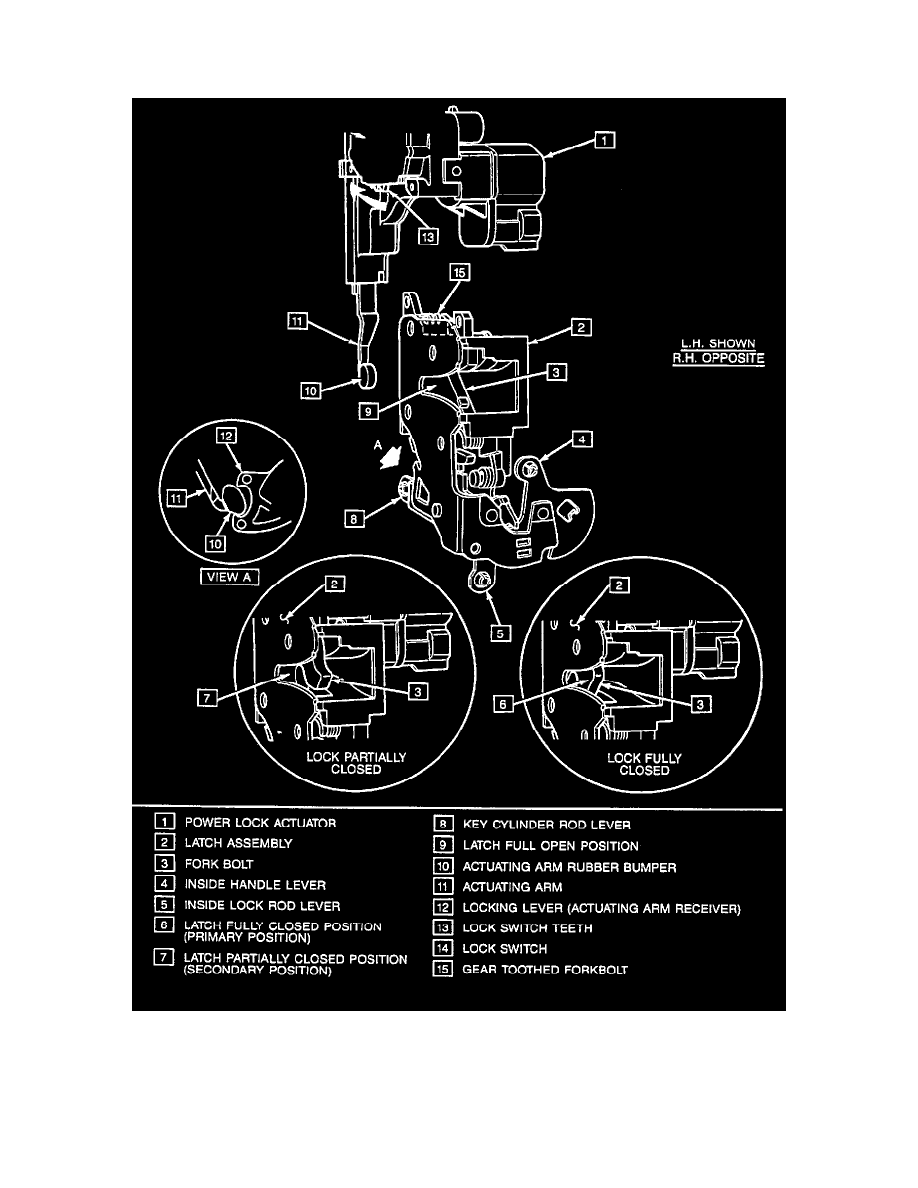

Door Lock and Actuator

Remove or Disconnect

1. Lock assembly.
2. Two Torx(R) screws retaining actuator to lock assembly.
3. Actuator.
