DeVille V8-4.6L VIN Y (1998)

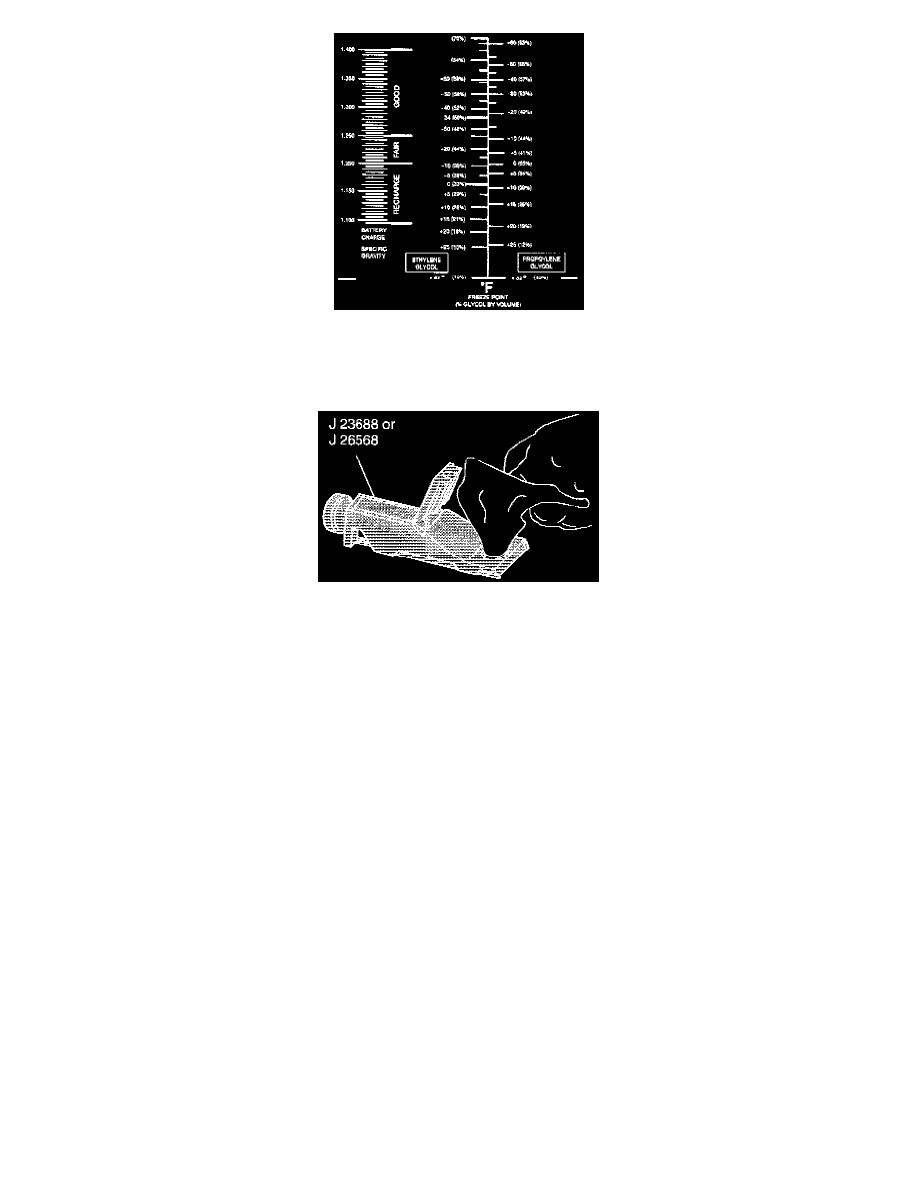

6. Point the coolant concentration tester toward any light source. Look into the eyepiece.
^
The coolant protection reading is at the point where the dividing line between light and dark crosses the scale. Antifreeze protection is the
scale on the right.
^
The temperature scale is reversed from a standard thermometer scale. Below zero readings are on the upper half of the scale.
7. If the readings are not clear, properly clean and dry the measuring surface. Conduct a new test.
