DeVille DTS V8-4.6L VIN 9 (2002)
Antenna Amplifier: Service and Repair
TV ANTENNA AMPLIFIER REPLACEMENT (W/UE7)
REMOVAL PROCEDURE
IMPORTANT: There is a TV antenna amplifier on both the left and the right sides of the vehicle.
1. Remove the left and/or right sail panels.

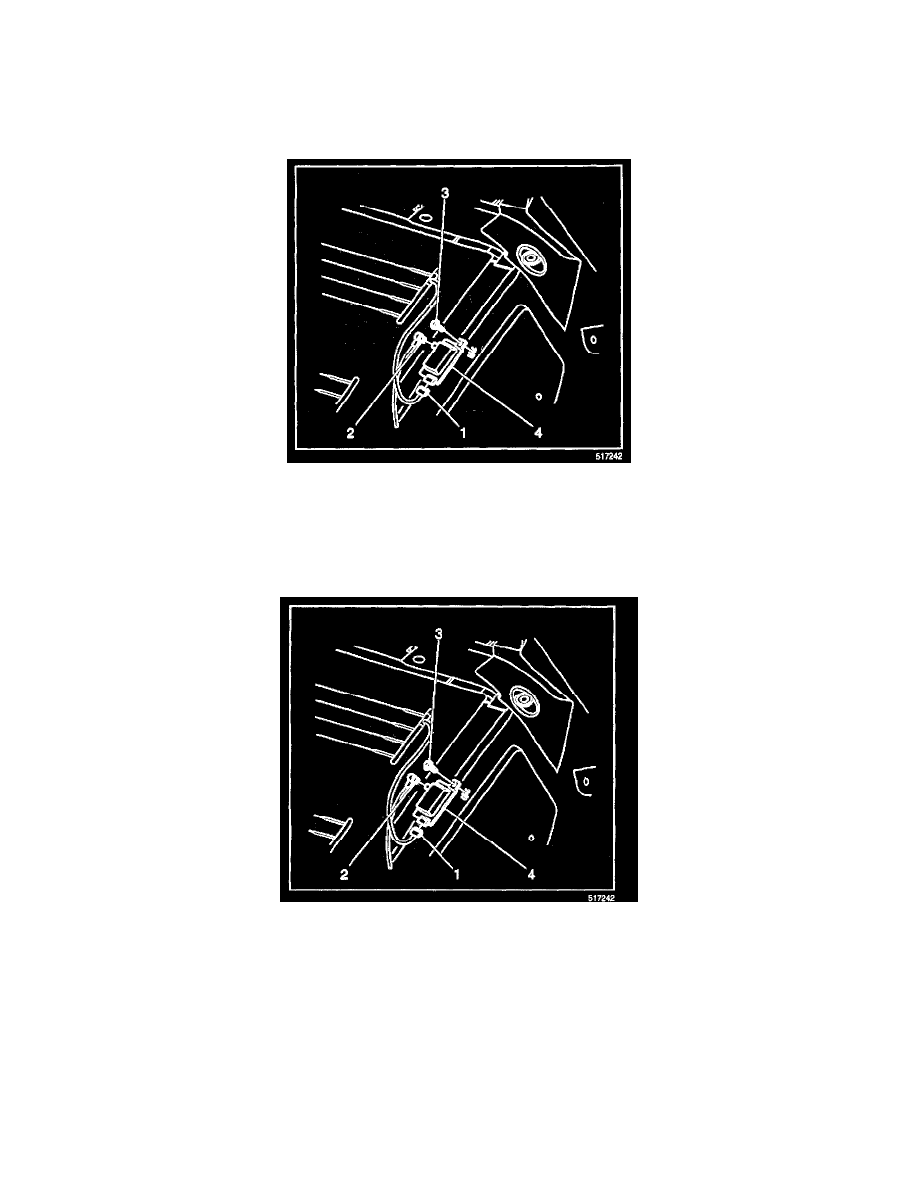

2. Disconnect the coaxial cable (4) and the electrical connection (3).
3. Remove the bolts (1) from the TV antenna amplifier (2).
4. Remove the TV antenna amplifier (2).
INSTALLATION PROCEDURE
1. Install the TV antenna amplifier module (2).
Ensure that the alignment tab is located properly before tightening the bolts (1).
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the bolts (1).
Tighten
Tighten the bolts (1) to 9 N.m (80 lb in).
3. Connect the coaxial cable (4) and the electrical connection (3).
4. Install the left and, or right sail panels.
