Fleetwood Brougham V8-307 5.0L (1989)
Blower Motor: Service and Repair

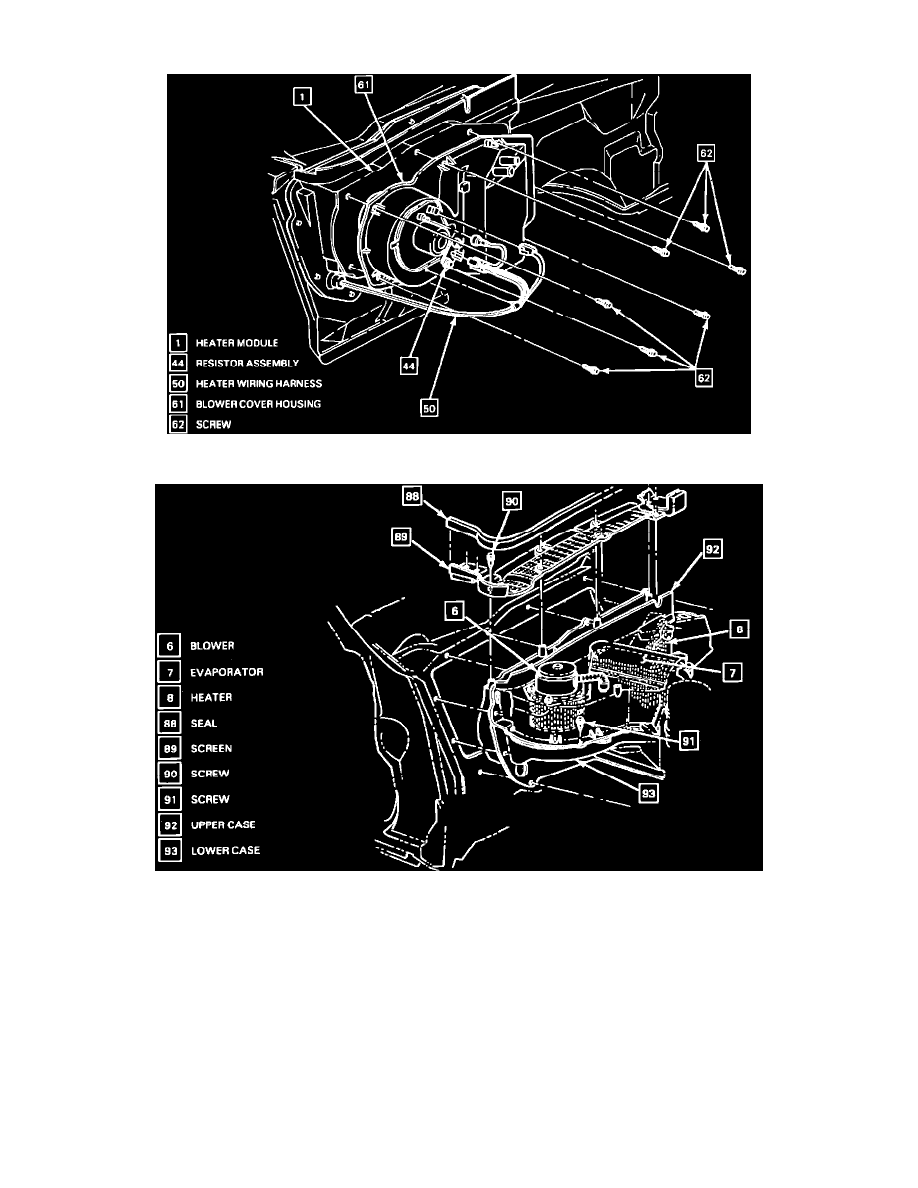

Fig. 28 Blower Motor & Heater Cores. Less A/C
Fig. 29 Blower Motor, Heater Core & Evaporator Core. With A/C
1.
On models equipped with airbags, disable airbag system as described under MAINTENANCE PROCEDURES/AIRBAG SYSTEM
DISARMING.
2.
On all models, disconnect battery ground cable.
3.
Disconnect blower motor lead wire, then the cooling tube, if equipped.
4.
Remove blower motor to case attaching screws, then remove blower motor, Fig. 28 and 29.
5.
Reverse procedure to install.
6.
Rearm airbag system as described under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING.
