Fleetwood FWD V8-273 4.5L (1988)

Page 2
background image

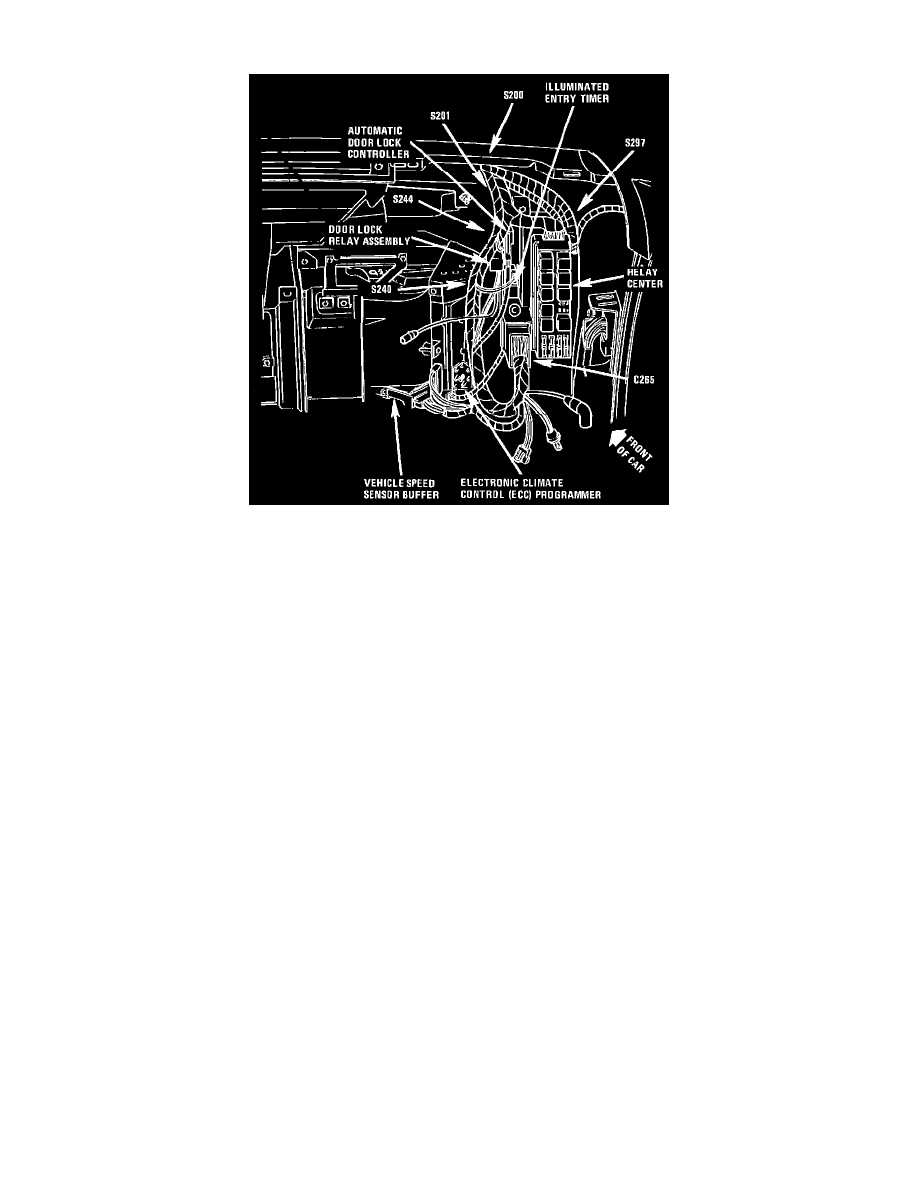

Relay Center Identification

The A/C Relay is located in the Relay Center. The Relay Center is located behind the RH side of I/P, at RH shroud.
