Fleetwood FWD V8-300 4.9L (1993)
Rear Door Panel: Service and Repair

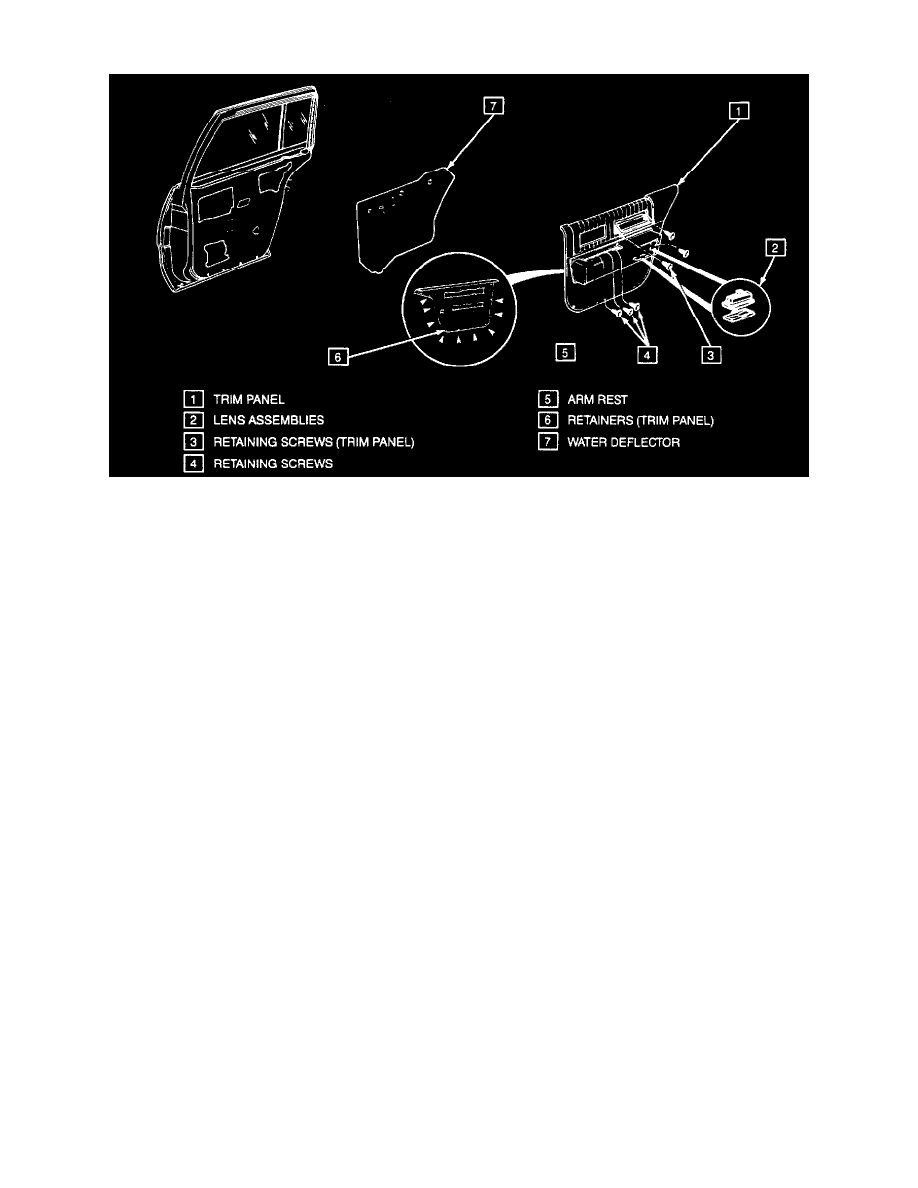

Rear Door Trim Panel
REMOVE OR DISCONNECT
1. Gently pry out lens and remove courtesy lamp assemblies.
2. Switch plate.
3. Retaining screws.
4. Retaining screws under pull handle.
5. Retainers using tool J 2459B, or equivalent, between trim panel and door.
INSTALL OR CONNECT
1. Trim panel to door.
2. Retaining screws under pull handle.
3. Retaining screws.
4. Switch plate.
5. Courtesy lamp assemblies.
