Manifold Pressure/Vacuum Sensor: Locations
Manifold Absolute Pressure (MAP) Sensor

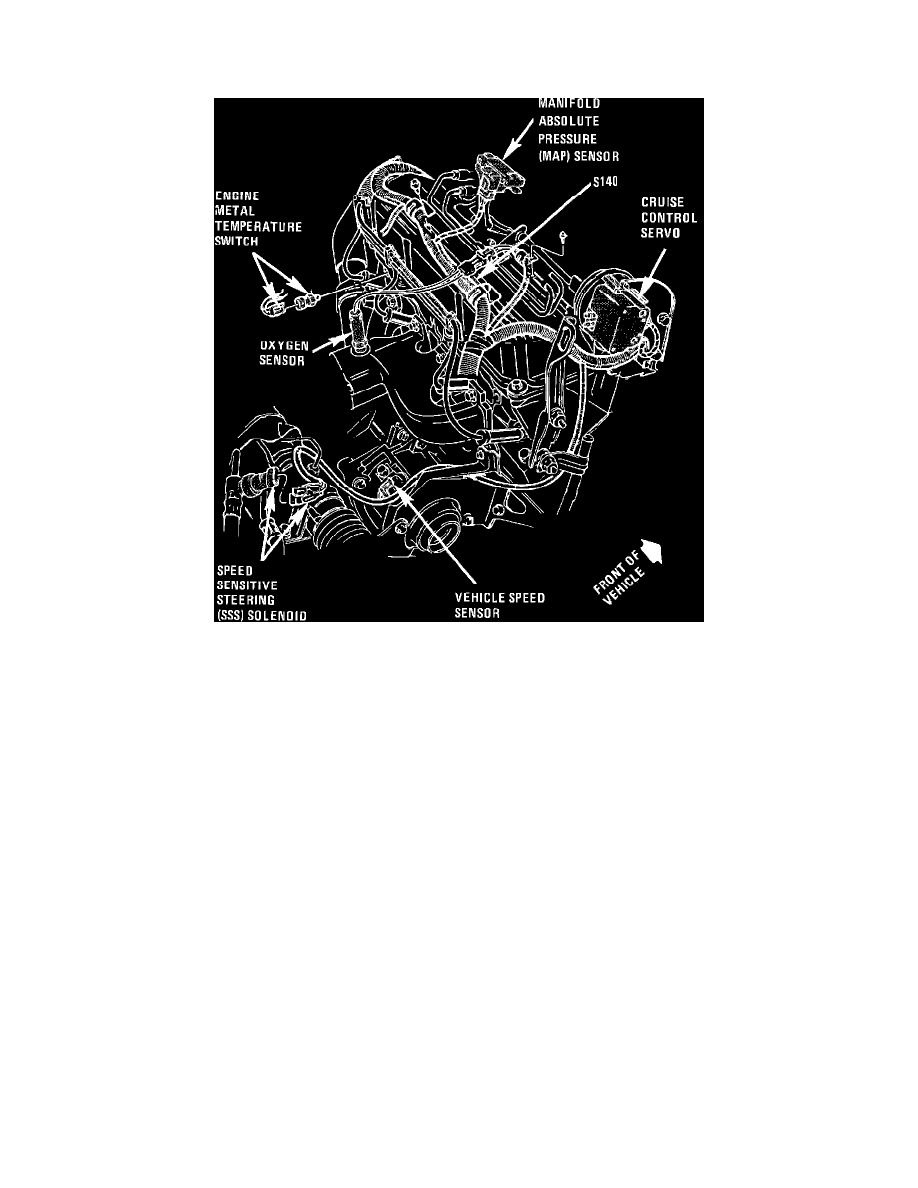

Component Location View. RH Rear of Engine

Top center of engine, above rear valve cover
