Fleetwood FWD V8-300 4.9L (1993)
Vehicle Speed Sensor: Service and Repair
Type 1 - One Piece Sensor

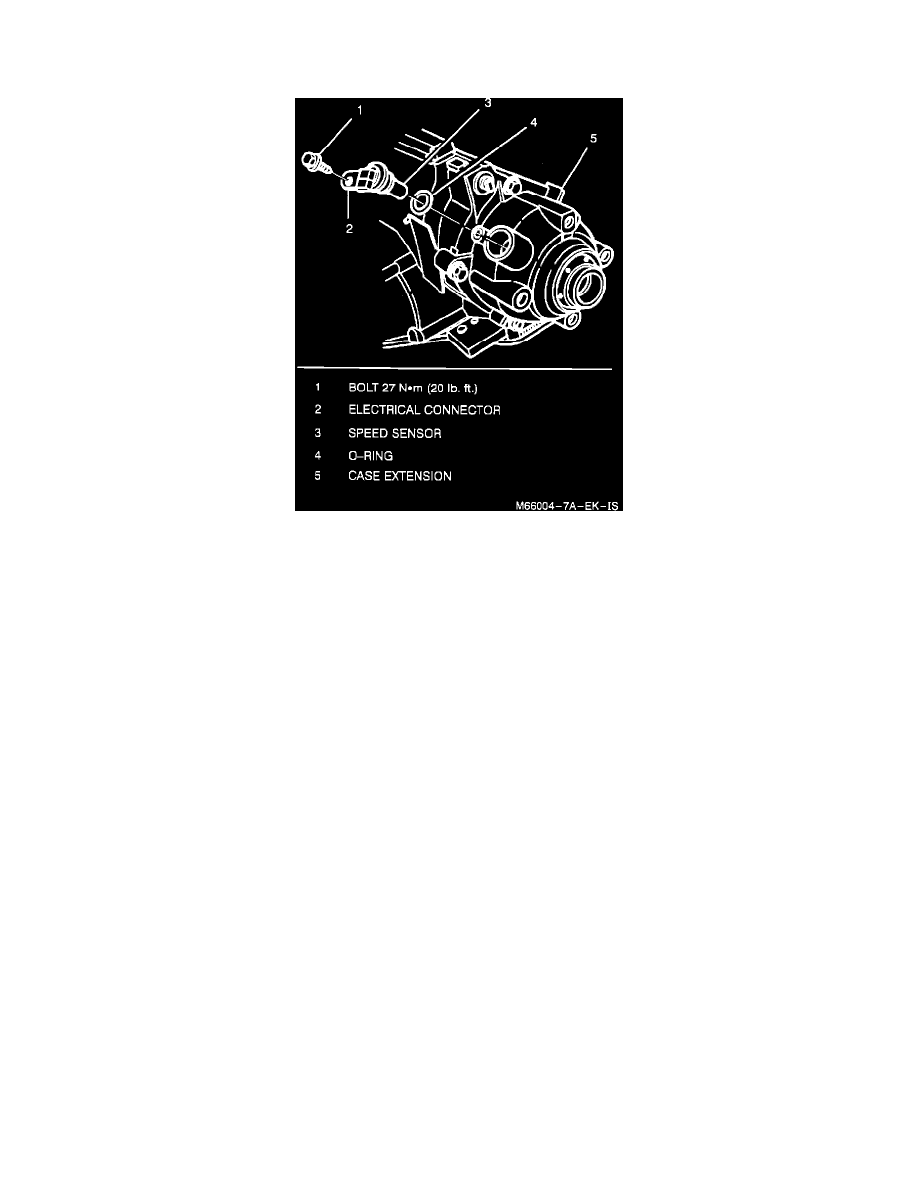

Speed Sensor Location
REMOVE OR DISCONNECT
-
Raise vehicle.
-
Electrical Connector.
-
Bolt.
-
Speed sensor from case extension.
-
O-ring from speed sensor.
INSTALL OR CONNECT
-
O-ring onto speed sensor.
-
Speed sensor.
-
Bolt. Torque to 11 Nm (97 in lbs).
-
Electrical Connector.
-
Lower vehicle.
LOCATION
Lower RH rear of engine.
