Seville V8-4.9L VIN B (1995)

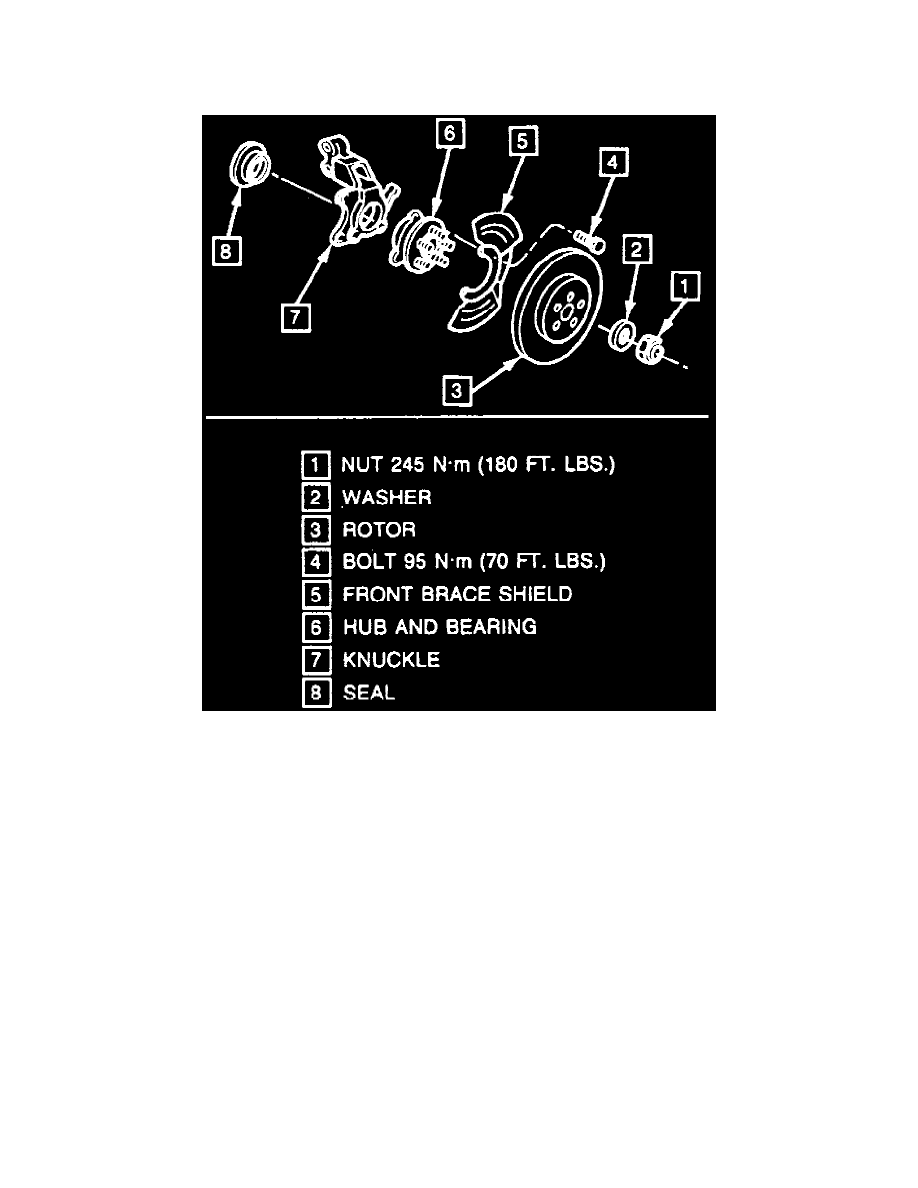

Fig. 2 Hub & Bearing Assembly Replacement
1. Siphon 2/3 of the brake fluid from master cylinder, then raise vehicle and support frame with stands.
2. Remove wheel and tire assembly.
3. Insert a drift through rotor and remove hub nut and washer.
4. Remove caliper boots, lift caliper off rotor and bracket, then secure caliper aside.
5. Remove bolts securing caliper bracket, bracket and the brake rotor. Prevailing torque bolts used to secure mounting bracket cannot be reused.
If bolts become loose or are removed, bolts must be replaced.
6. Mount tool J 28733 or equivalent on hub, Fig. 1, then tighten screw just enough to separate drive axle from hub.
7. Remove hub retaining bolts and the hub and bearing assembly, Fig. 2.
8. If seal is being replaced, drive seal toward engine, then cut seal off drive axle.
9. Lubricate seal lip and install using a driver, install O-ring and fill cavity between seal and bearing with grease.
10. Install hub and bearing assembly over drive axle and tighten bolts to specifications.
11. Install rotor and caliper mounting bracket and tighten new bracket bolts to specifications.
12. Install caliper ensure insulators are properly positioned, coat mounting bolt shafts with silicone grease and tighten to specifications.
13. Install hub nut and washer, insert drift through rotor and tighten nut securely.
14. Remove drift, install wheel and tire assembly and lower vehicle, then tighten hub nut to specifications.
