Avalanche 1500 4WD V8-5.3L (2007)
Timing Component Alignment Marks: Locations
Timing Component Alignment Marks (LC9/LMG/LY2/LY5)
Important:
^
The sprocket teeth and timing chain must mesh.
^
The camshaft and the crankshaft sprocket alignment marks MUST be aligned properly.

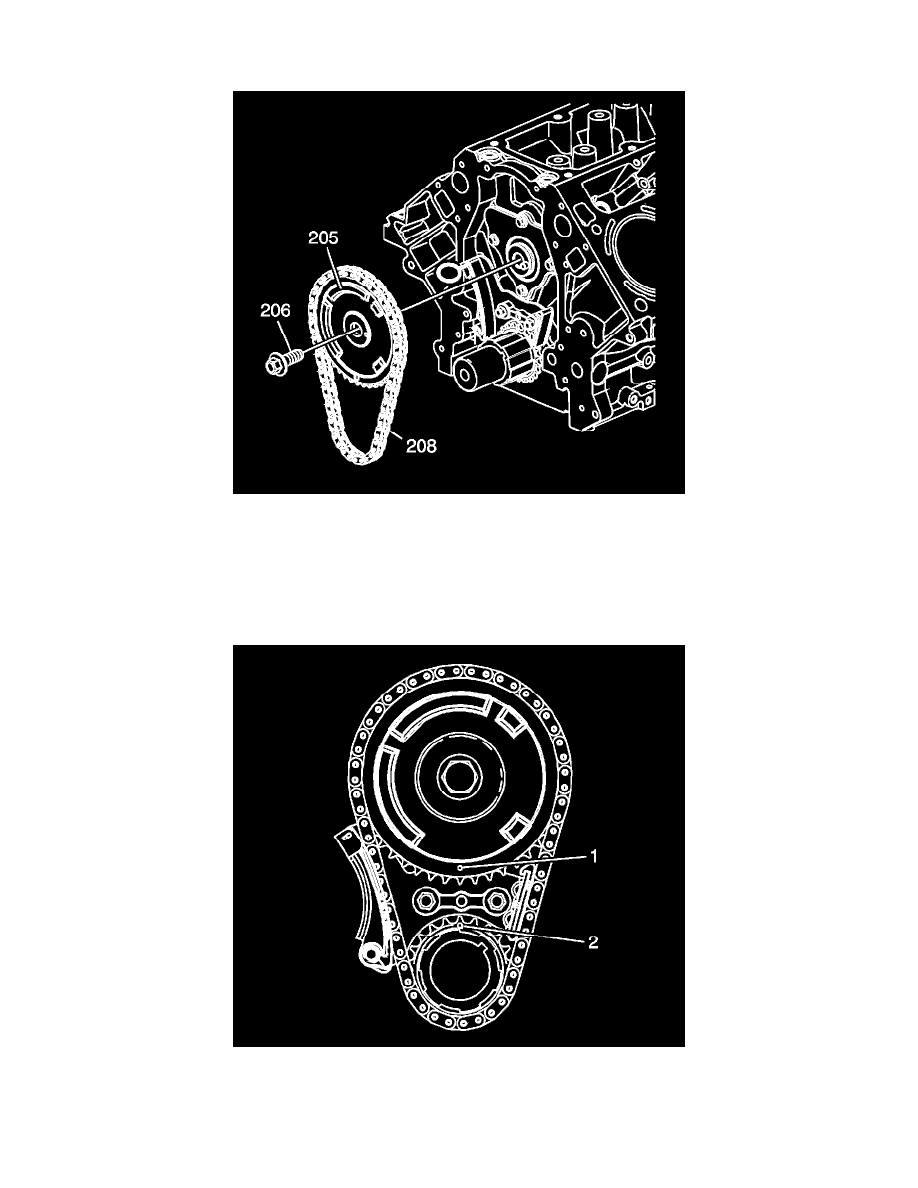

Position the camshaft sprocket (205) so the timing mark is in the 6 o'clock position.
Install the camshaft sprocket (205), timing chain (208), and bolt (206).
Inspect the sprockets for proper alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the
crankshaft sprocket (2) should be located in the 12 o'clock position.
