Twisted/Shielded Cable
Twisted/shielded cable is sometimes used to protect wiring from electrical noise (stray signals). For example, two-conductor cable of this construction is
used between the Engine Control Module (ECM) and the distributor.

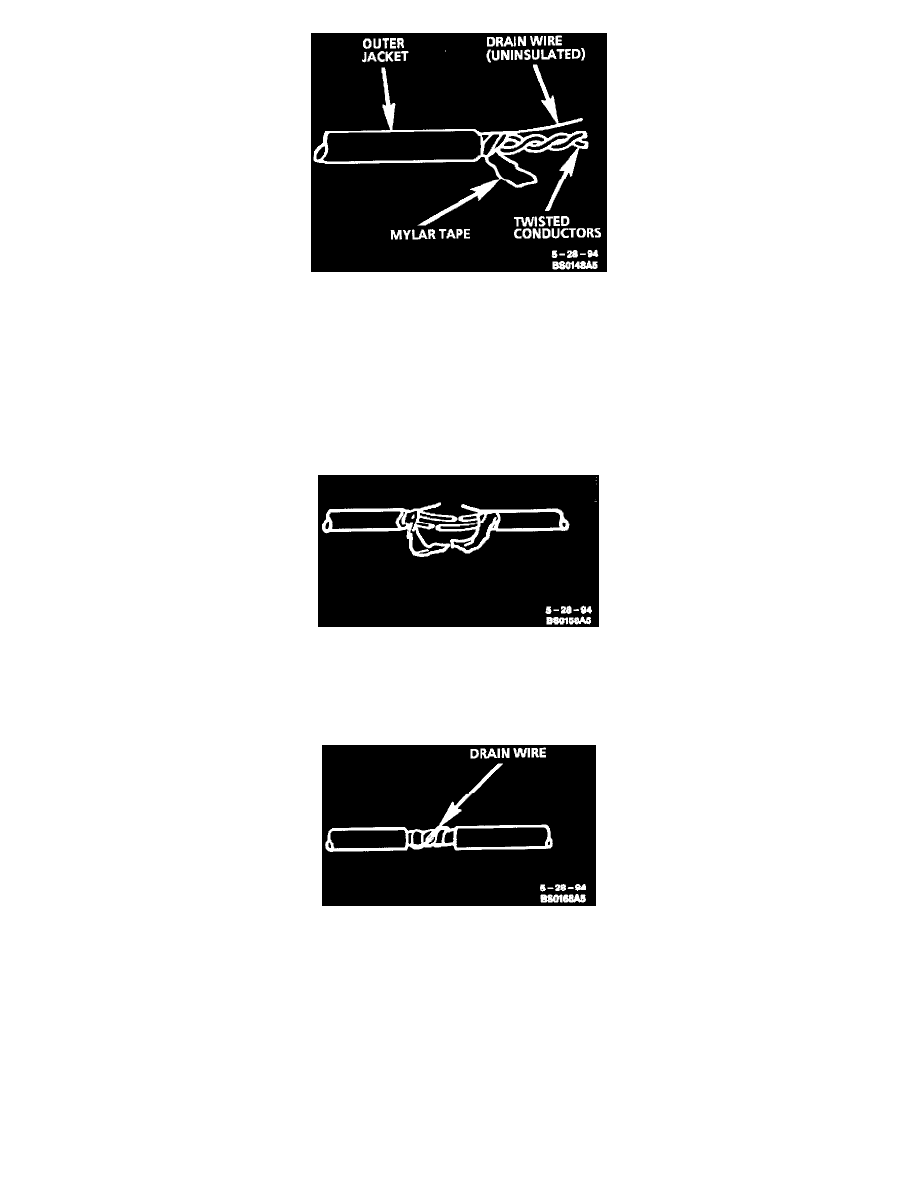

Step 1: Remove Outer Jacket
Remove the outer jacket and discard it. Be careful to avoid cutting into the drain wire or the mylar tape.
Step 2: Unwrap the Tape
Unwrap the aluminum/mylar tape, but do not remove it The tape will be used to rewrap the twisted conductors after file splices have been made.
The Untwisted Conductors
Step 3: Prepare the Splice
Untwist the conductors. Then, prepare the splice by following the splicing instructions for copper wire presented earlier. Remember to stagger
splices to avoid shorts.
The Re-Assembled Cable
Step 4: Reassemble the cable
After you have spliced and taped each wire, rewrap the conductors with file mylar tape. Be careful to avoid wrapping the drain wire in the tape.
Next, splice file drain wire following the splicing instructions for copper wire. Then, wrap file drain wire around the conductors and mylar tape.
