Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)
Cross-Member: Technical Service Bulletins
Suspension - Revised Fastener Tightening Specifications
Group Ref.: Steering/Suspension
Bulletin No.: 433302
Date: May, 1994
SERVICE MANUAL UPDATE
SUBJECT:
SECTIONS 3C-4 AND 3C-6 - REVISED SUSPENSION FASTENER TIGHTENING SPECIFICATIONS
MODELS:
1994 BUICK SKYLARK
1994 CHEVROLET BERETTA AND CORSICA
1994 OLDSMOBILE ACHIEVA
1994 PONTIAC GRAND AM

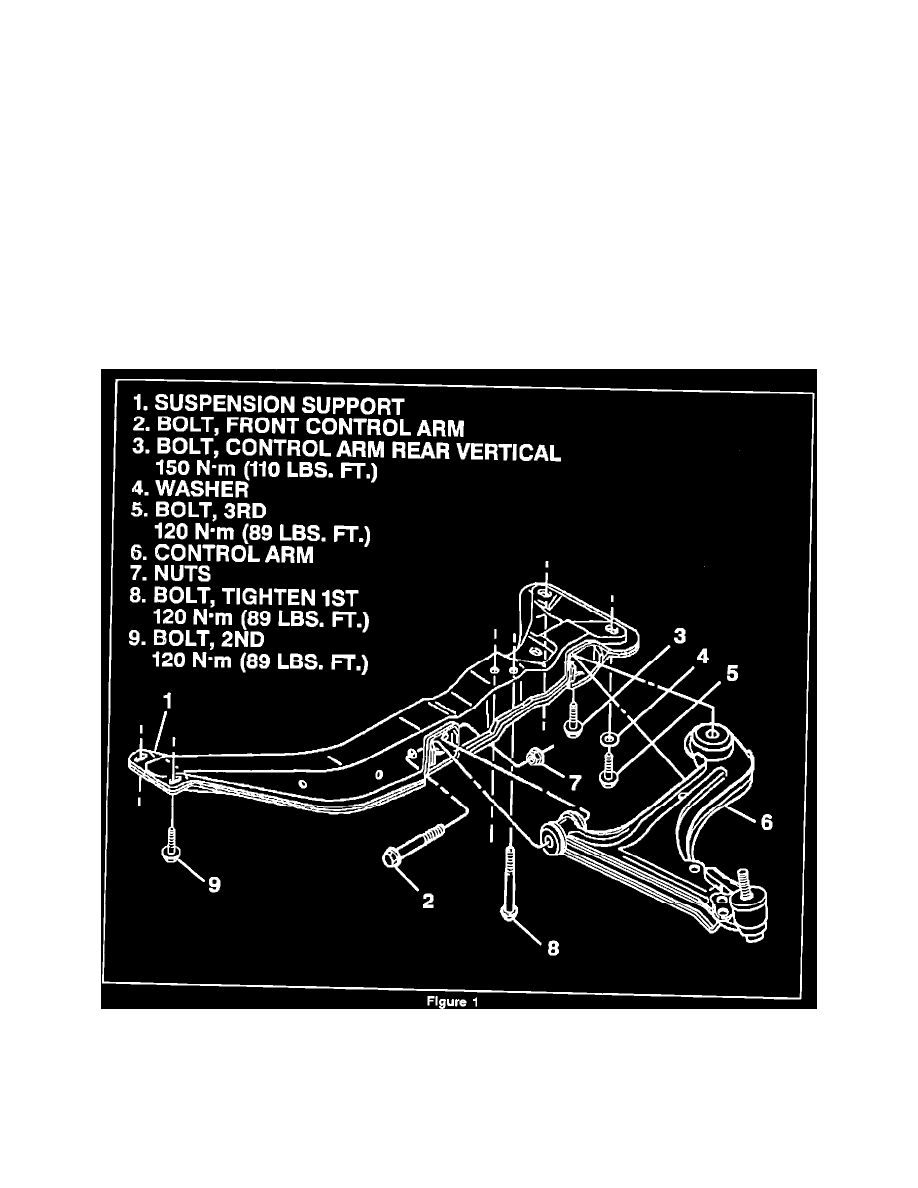

This bulletin updates the tightening specifications on the front suspension supports and control arm attachment fasteners.
Suspension support centers bolts
120 N-m (89 lbs.ft.)
Suspension support front bolts
120 N-m (89 lbs.ft.)
Suspension support rear bolts
120 N-m (89 lbs.ft.)
