Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)

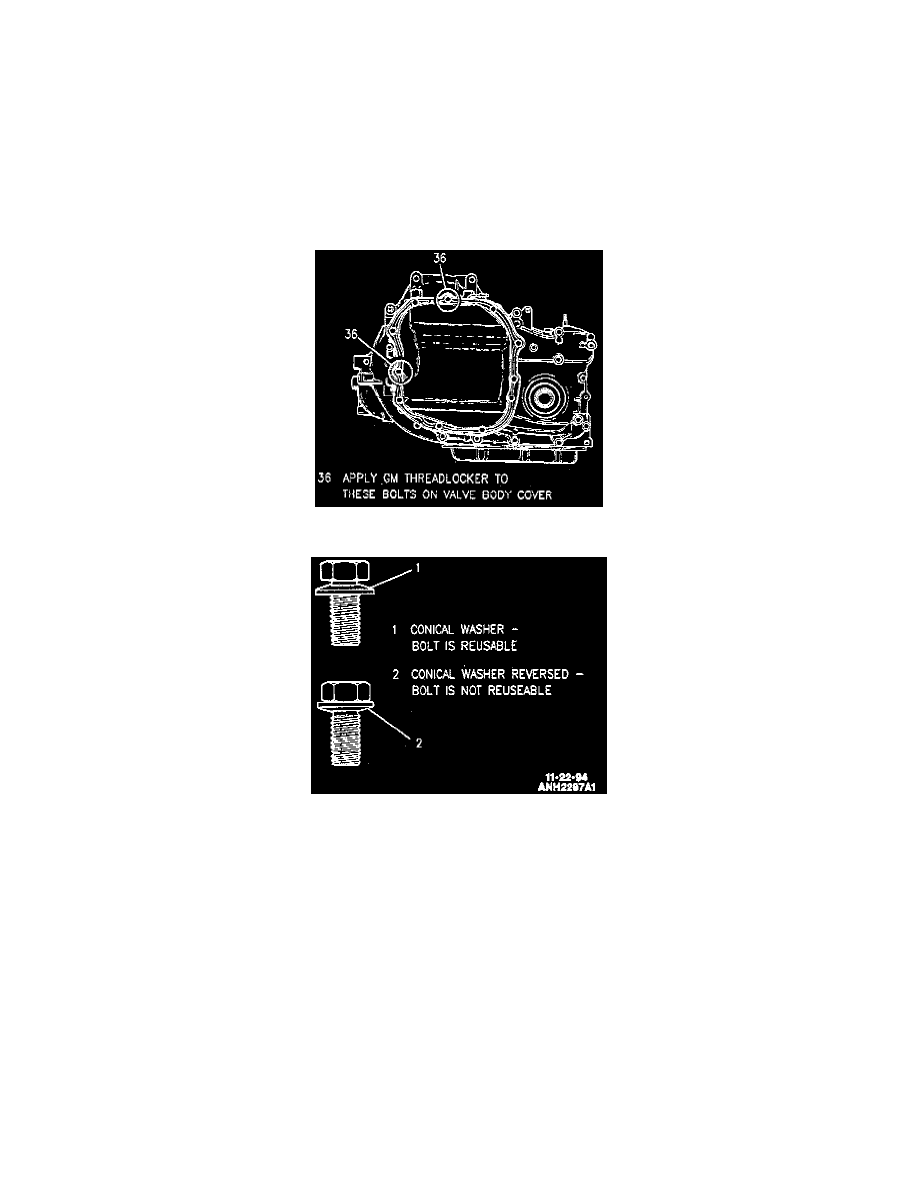

Valve Body: Service and Repair
Transaxle Mount
TRANSAXLE MOUNT
TOOL REQUIRED
^
J 28467-A Engine Support Fixture
REMOVE OR DISCONNECT
1. Negative battery cable.
2. Install engine support fixture J 28467-A. Raise transaxle enough to unload transaxle mounts.
3. Raise vehicle.
4. Left front wheel and tire assembly.
5. Left splash shield.
6. Pipe expansion bolt from transaxle support assembly.
7. Transaxle mount to body bolts.
8. Lower engine/transaxle assembly just enough to be able to remove transaxle mount from bracket.
9. Transaxle mount.
INSTALL OR CONNECT
1. Transaxle mount to transaxle bracket. Do not tighten until mount is fastened to body.
2. Raise engine/transaxle assembly.
3. Transaxle mount to body bolts.
4. Pipe expansion bolt to transaxle support assembly.
5. Left splash shield.
6. Left front wheel and tire assembly.
7. Remove engine support fixture J 28467-360.
8. Negative battery cable.
