Constant Velocity Joint: Service and Repair
Inner Tripot & Seal

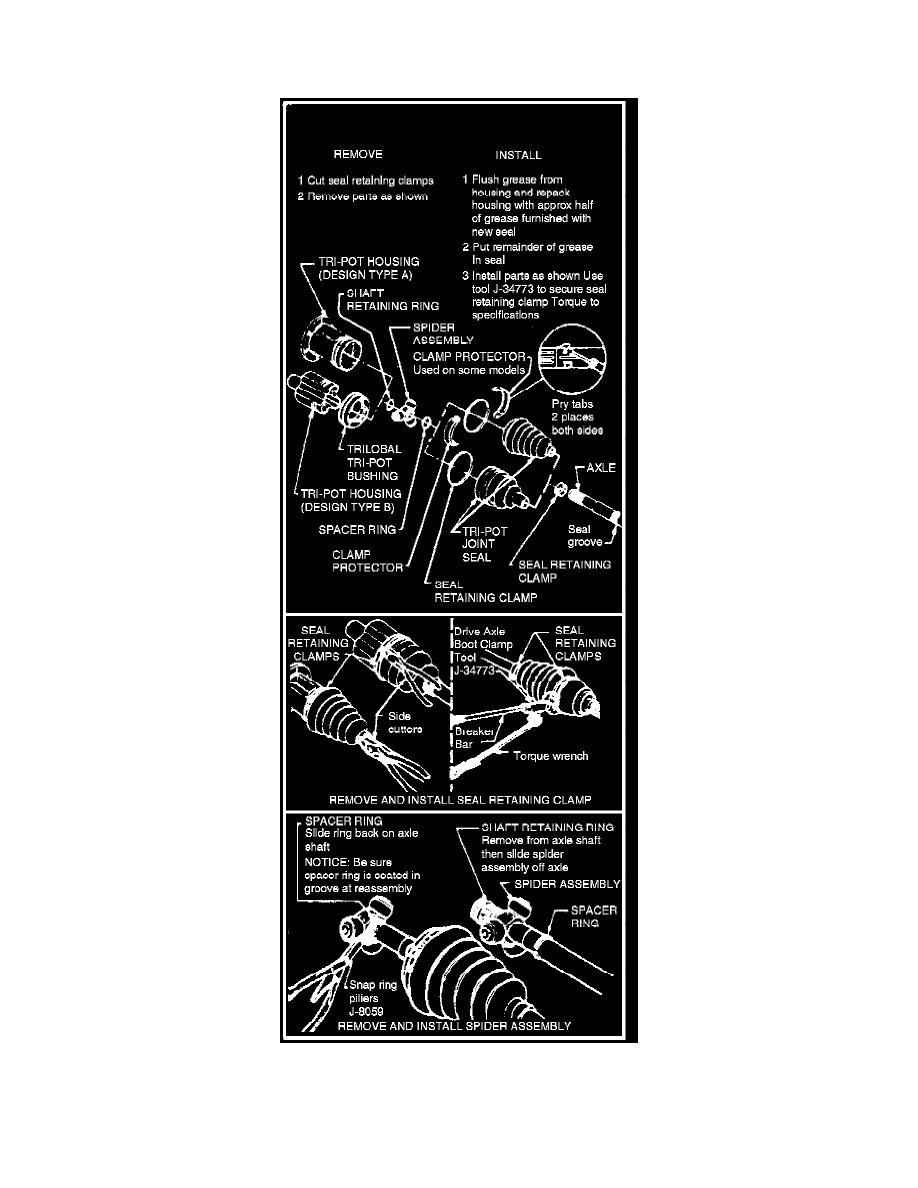

Fig. 18 Inner Tripot Seal Replacement.
