C 2500 Suburban 2WD V8-454 7.4L VIN J SFI (1998)

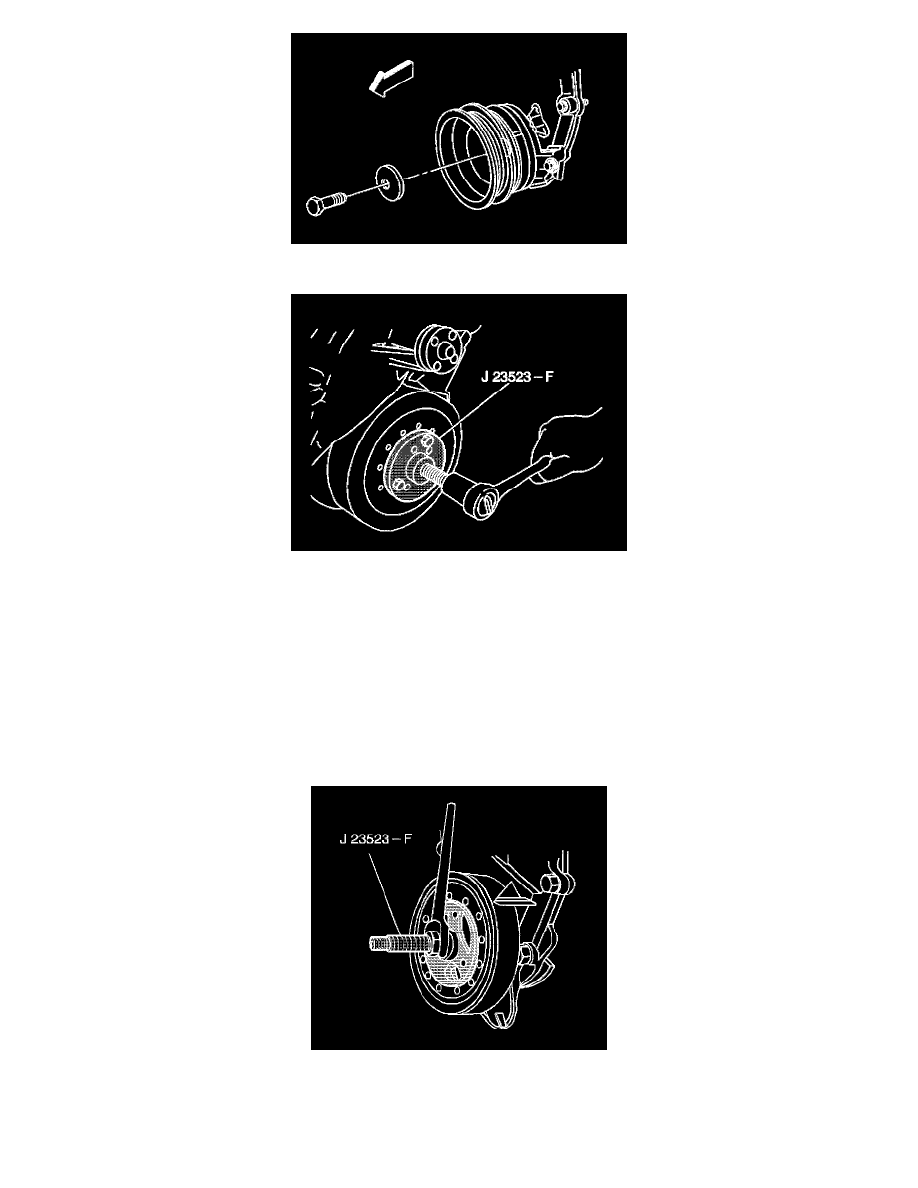

8. Remove the crankshaft bolt and washer from the crankshaft.
9. Use the J 23523-F to remove the crankshaft balancer
10. Remove the J 23523-F from the crankshaft balancer.
INSTALLATION PROCEDURE
^
Tools Required
-
J 23523-F Crankshaft Balancer Puller and Installer
-
J 22102 Oil Seal Installer
IMPORTANT: The inertial weight section of the crankshaft balancer is assembled to the hub with a rubber type material. The correct installation
procedures (with the proper tools) must be followed or movement of the inertial weight section of the crankshaft balancer will destroy the balance and
will have to be replaced.
1. Install the crankshaft balancer end of the crankshaft.
2. Install J23523-F to the crankshaft balancer.
3. Use the J23523-F and install the crankshaft balancer to the crankshaft.
4. Remove the tool from the crankshaft balancer.
