Caprice V8-265 4.3L VIN W SFI (1996)
Alignment: Specifications

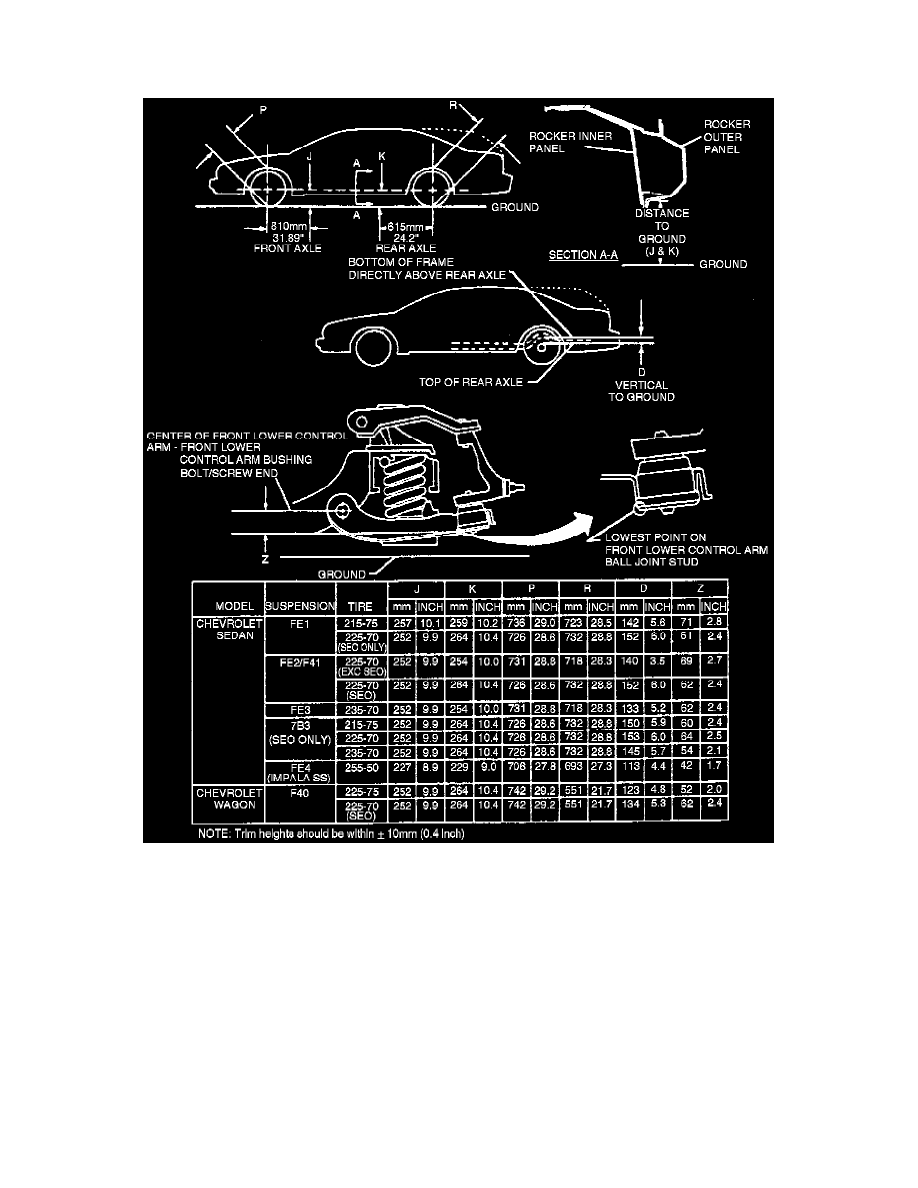

Alignment Specifications
Front Alignment Specifications
Caster Angle, Degrees
Limits .......................................................................................................................................................................................................................... [01]
Desired ........................................................................................................................................................................................................................ [03]
Camber Angle, Degrees
Limits .............................................................................................................................................................................................................. -1.5 to +1.5
Desired ............................................................................................................................................................................................................................ 0
Total Toe, Degrees ............................................................................................................................................................................................. -.04 to +.36
Ball Joint Wear, Inch
Lower Ball Stud [02] ................................................................................................................................................................................................. .050
Upper Ball Stud [02] ................................................................................................................................................................................................. .125
[01] Left side, +2.25 to +4.25; right side, +2.75 to +4.75.
[02] Refer to Suspension/Ball Joint, lower or Upper/Service and Repair for proper ball joint inspection procedure.
[03] Left side, +3.25; right side, +3.75.
Rear Alignment Specifications
Thrust Angle, Degrees ....................................................................................................................................................................................... -.15 to +.15
