Caprice V8-265 4.3L VIN W SFI (1996)

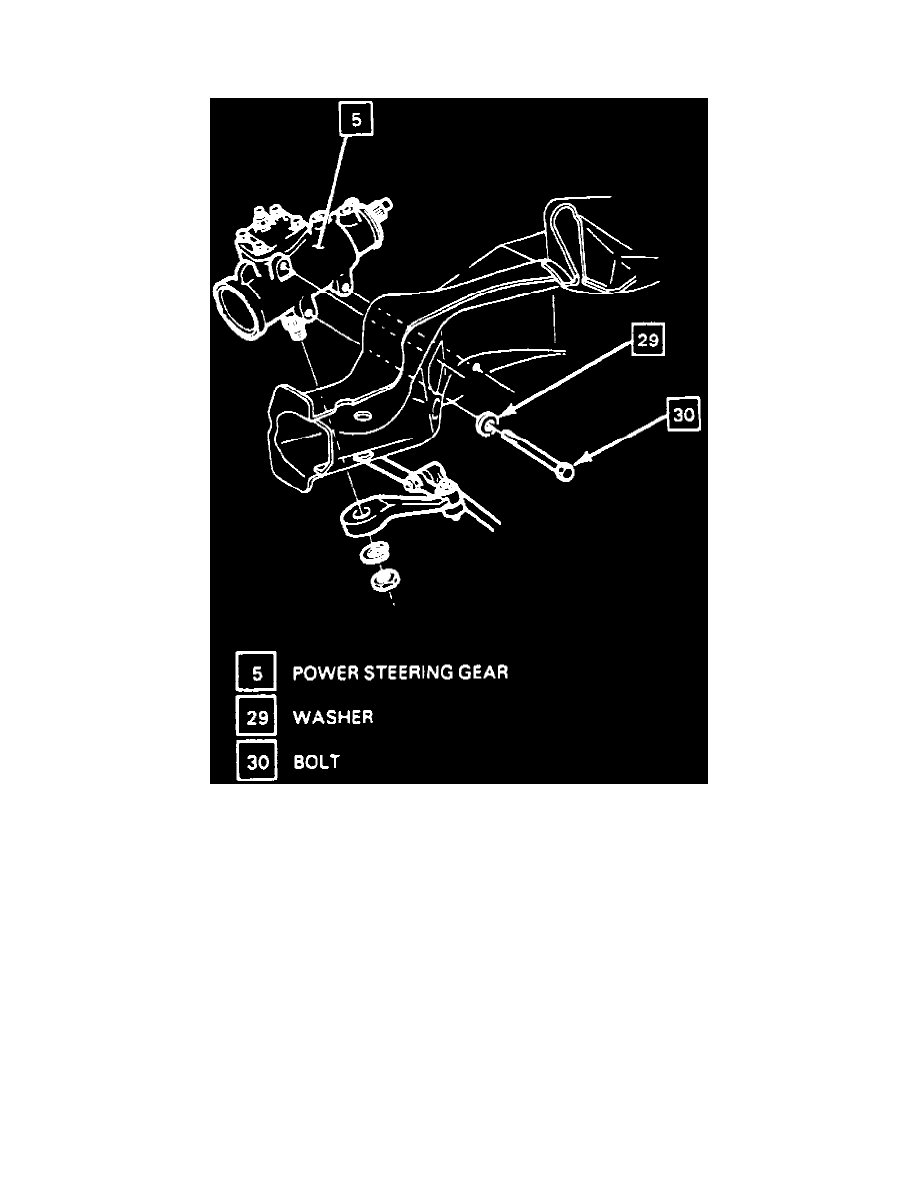

Fig. 10 Service Procedures (Part 2 Of 4) Saginaw Rotary Valve Power Steering Gear
Component Service
Whenever a part which forms a sealing surface for an O-ring is removed, the O-ring seal should also be removed and replaced with a new seal.
Whenever one of the Pitman shaft or stub shaft seals are removed, all adjacent seals should be removed and replaced with new seals. Lubricate all new
seals with power steering fluid to facilitate assembly. For service procedures on this power steering gear assembly, refer to Figs. 9 and 10.
