Colorado 2WD L4-2.8L VIN 8 (2004)
Front Door Exterior Handle: Service and Repair
Door Handle Replacement - Front Outside
Removal Procedure
1. Remove the front door trim panel.
2. Remove the front door water deflector.

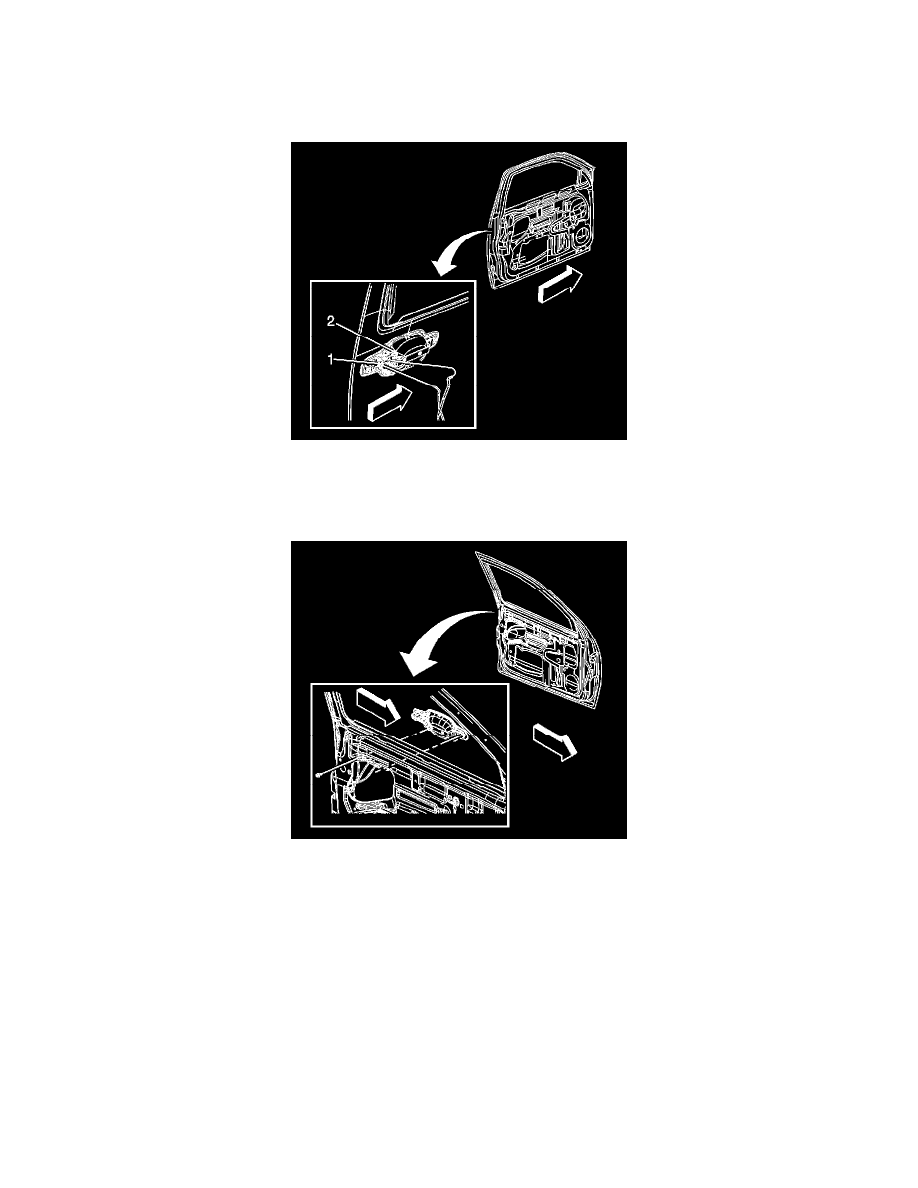

3. Disconnect the outside door handle rod by releasing the retaining clip (2).
4. Disconnect the lock cylinder rod by releasing the retaining clip (1).
5. Remove the bolts retaining the outside door handle to the door.
6. Remove the outside door handle from the door.
7. Remove the lock cylinder from the outside door handle.
Installation Procedure
