Colorado 4WD L5-3.7L (2007)

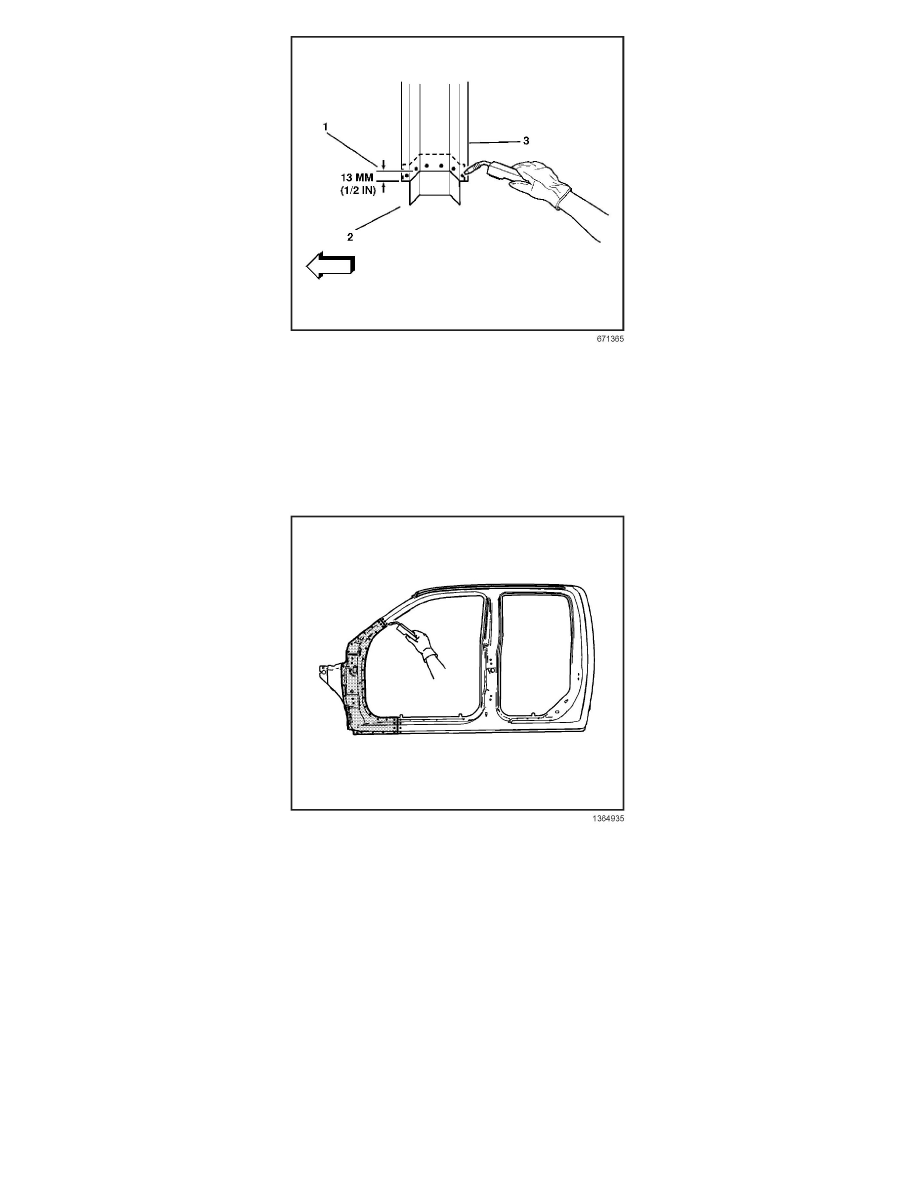

7. Fit the backing plate halfway into the sectioning joint, clamp and plug weld to the vehicle.
8. Position the center pillar.
9. Plug weld accordingly.
IMPORTANT: To create a solid weld with minimum heat distortion make 25 mm (1 in) stitch welds along the seam with 25 mm (1 in) gaps
between. Then go back and complete the stitch weld.
10. Stitch the weld sectioning joint.
11. Clean and prepare all welded surfaces.
