Corvette V8-6.0L VIN U (2005)
17. Insert the following parts into the cylinder retainer slot:
-
The retainer spring (2)
-
The retainer (3)
18. Lubricate the following parts with GM P/N 12345996 or equivalent as needed:
-
The detent pins (1)
-
The cylinder retainer (3)
IMPORTANT: Use a paste type grease, not a spray, for the following step.
SIDE DOOR LOCK CYLINDER CODING
The side door lock cylinder has five snap-in tumblers. The number 1-5 positions (beginning closest to the cylinder head) is a brass retainer tumbler.
The 6-10 positions are standard tumbler positions. Therefore, only the 6-10 positions are required.

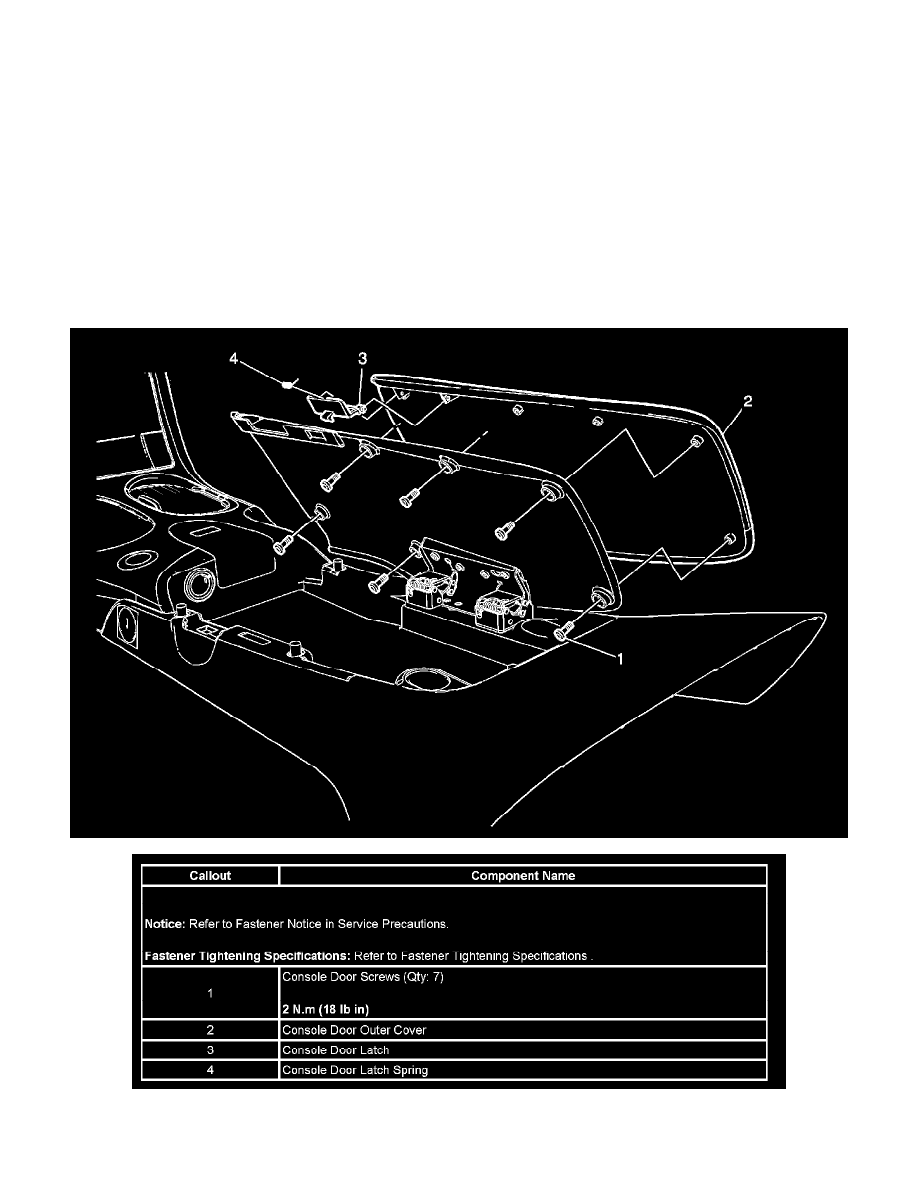

Latch Replacement - Console Compartment Door
Latch Replacement - Console Compartment Door
Lock Cylinder Replace - Console Compartment Door
