Cruze L4-1.4L Turbo (2011)
Oil Line: Service and Repair
Turbocharger Oil Feed Pipe Replacement
Turbocharger Oil Feed Pipe Replacement
Removal Procedure
1. Open the hood.
2. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (See: Starting and Charging/Battery/Battery
Cable/Negative/Service and Repair/Battery Negative Cable Disconnection and Connection).
3. Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (1.4L LUH and LUJ) (See: Exhaust System/Heat
Shield/Service and Repair/Exhaust Manifold Heat Shield Replacement)Exhaust Manifold Heat Shield Replacement (1.6L LDE, LXV, 1.8L 2H0,
and LUW) (See: Exhaust System/Heat Shield/Service and Repair/Exhaust Manifold Heat Shield Replacement).

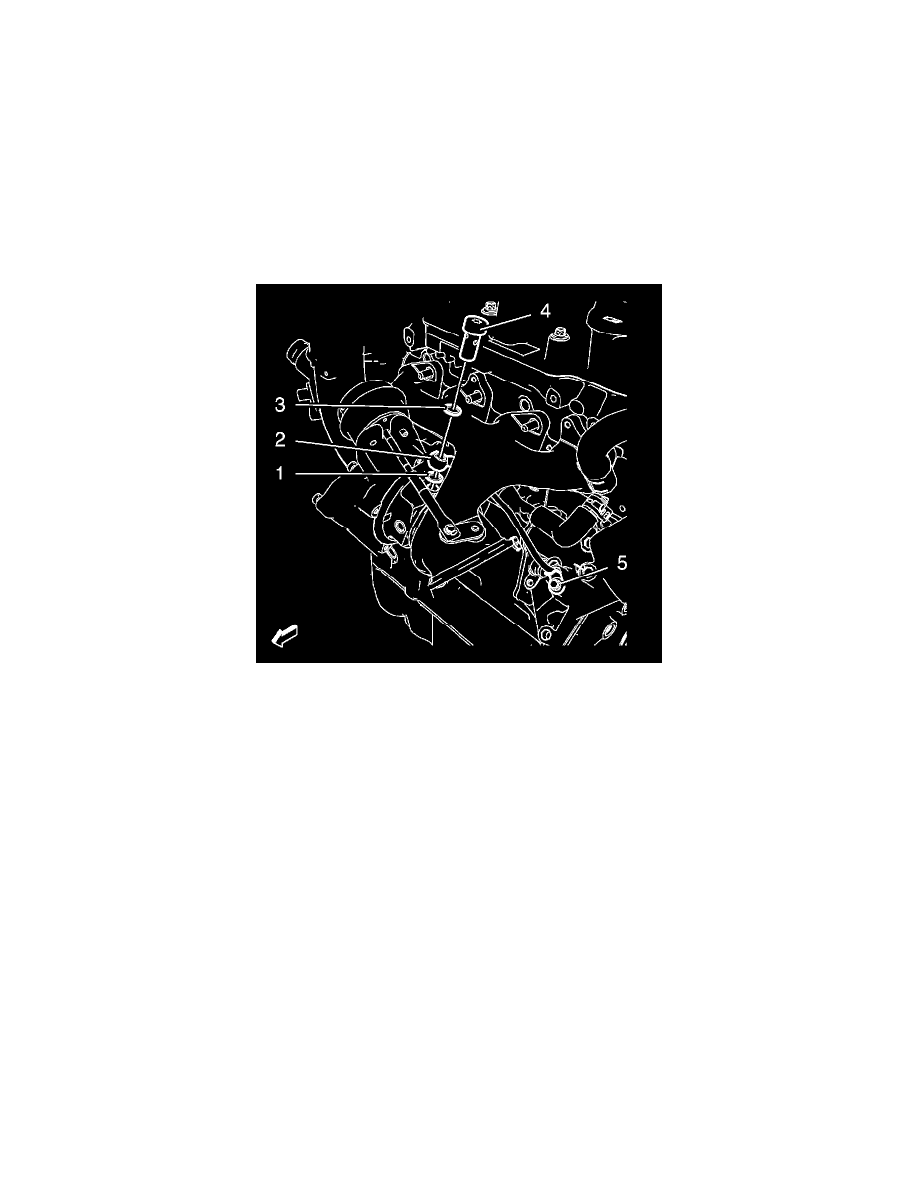

4. Remove the turbocharger oil feed pipe bolt (5).
5. Remove the turbocharger oil feed pipe hollow screw (4) and the 2 seal rings (1) and (3).
6. Remove the turbocharger oil feed pipe (2) and the rubber seal ring.
Installation Procedure
1. Clean the sealing surfaces.
