Malibu L4-2.4L Hybrid (2008)
Dimmer Switch: Locations
Instrument Panel/Center Console Component Views

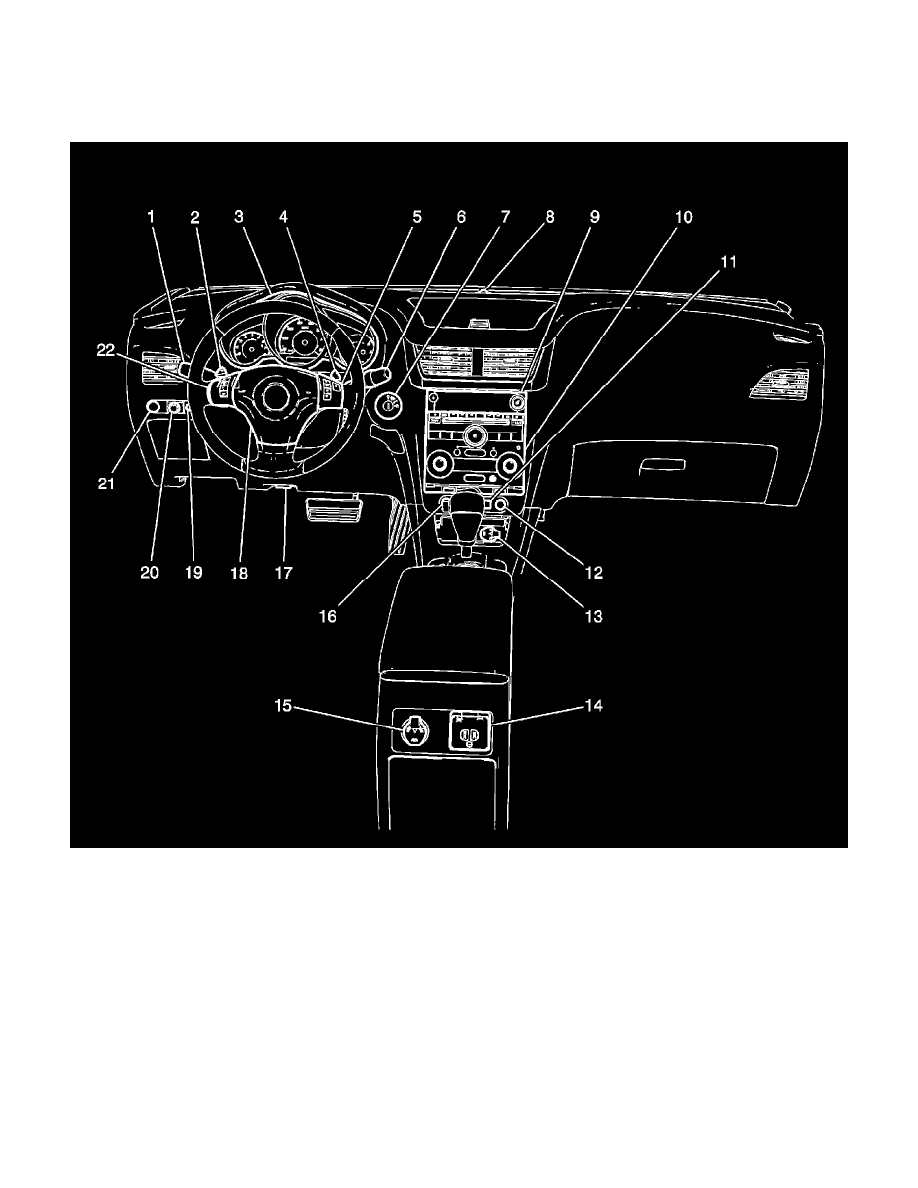

Instrument Panel Overview
1 - Turn Signal/Multifunction Switch
2 - Tap Up/Tap Down Switch - Left (KB7)
3 - Instrument Panel Cluster (IPC)
4 - Tap Up/Tap Down Switch - Right (KB7)
5 - Steering Wheel Control Switch - Right (UK3)
6 - Windshield Wiper/Washer Switch
7 - Ignition Switch
8 - Sunload Sensor (C68)
9 - Radio/Navigation Unit
10 - HVAC Control Module
11 - Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
12 - Traction Control Switch (TCS)
13 - Accessory Power Outlet (-DT4)
14 - Accessory A/C Power Outlet (KV1)
15 - Accessory Power Outlet (DT4)
16 - Hazard Warning Switch
