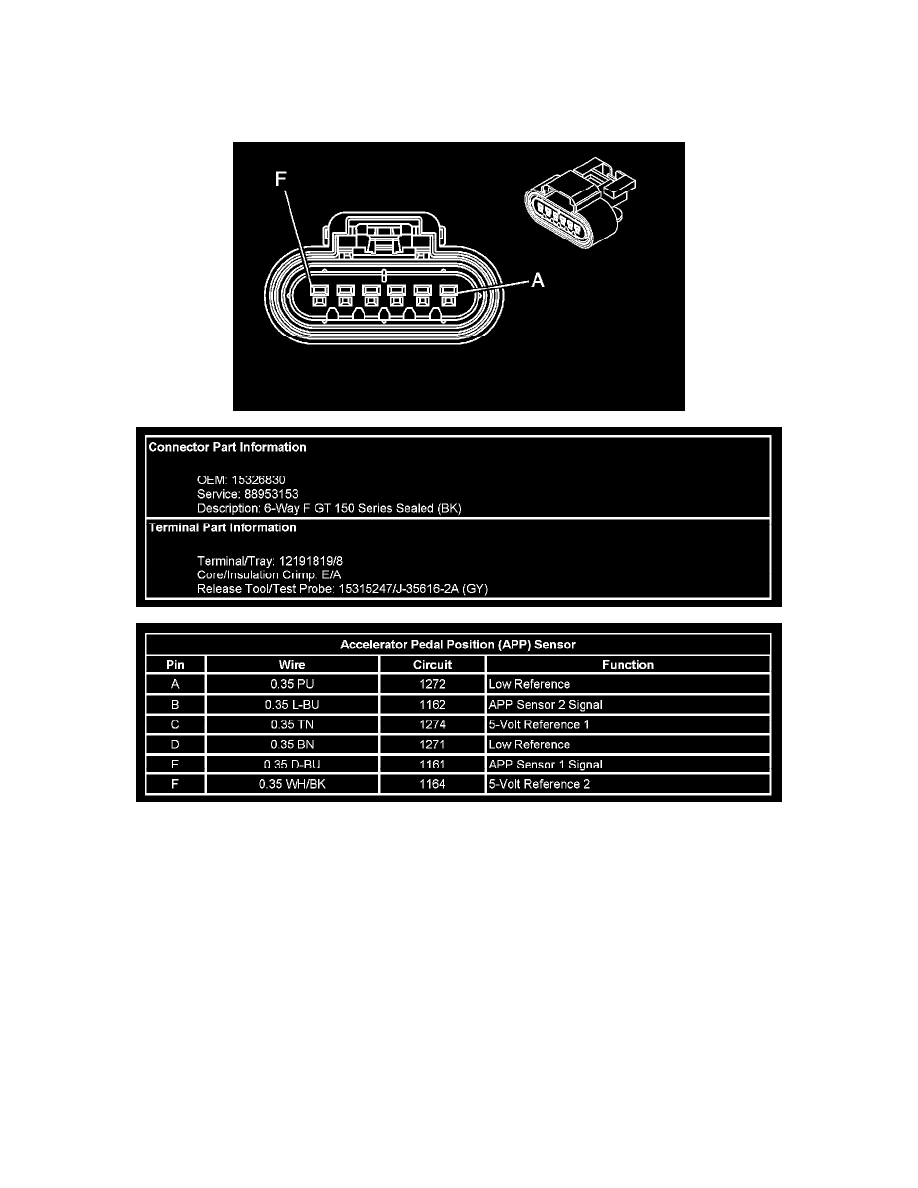

Accelerator Pedal Position Sensor: Diagrams

Component Connector End Views

Accelerator Pedal Position (APP) Sensor
