Malibu V6-3.5L VIN 8 (2004)
Fan Shroud: Service and Repair
Cooling Fan and Shroud Replacement (LX9)
^
Tools Required
-
J 38185 Hose Clamp Pliers
Removal Procedure
1. Drain the coolant.
2. Remove the left headlamp.
3. Remove the right headlamp.
4. Remove the upper transmission oil cooler pipe from the radiator.

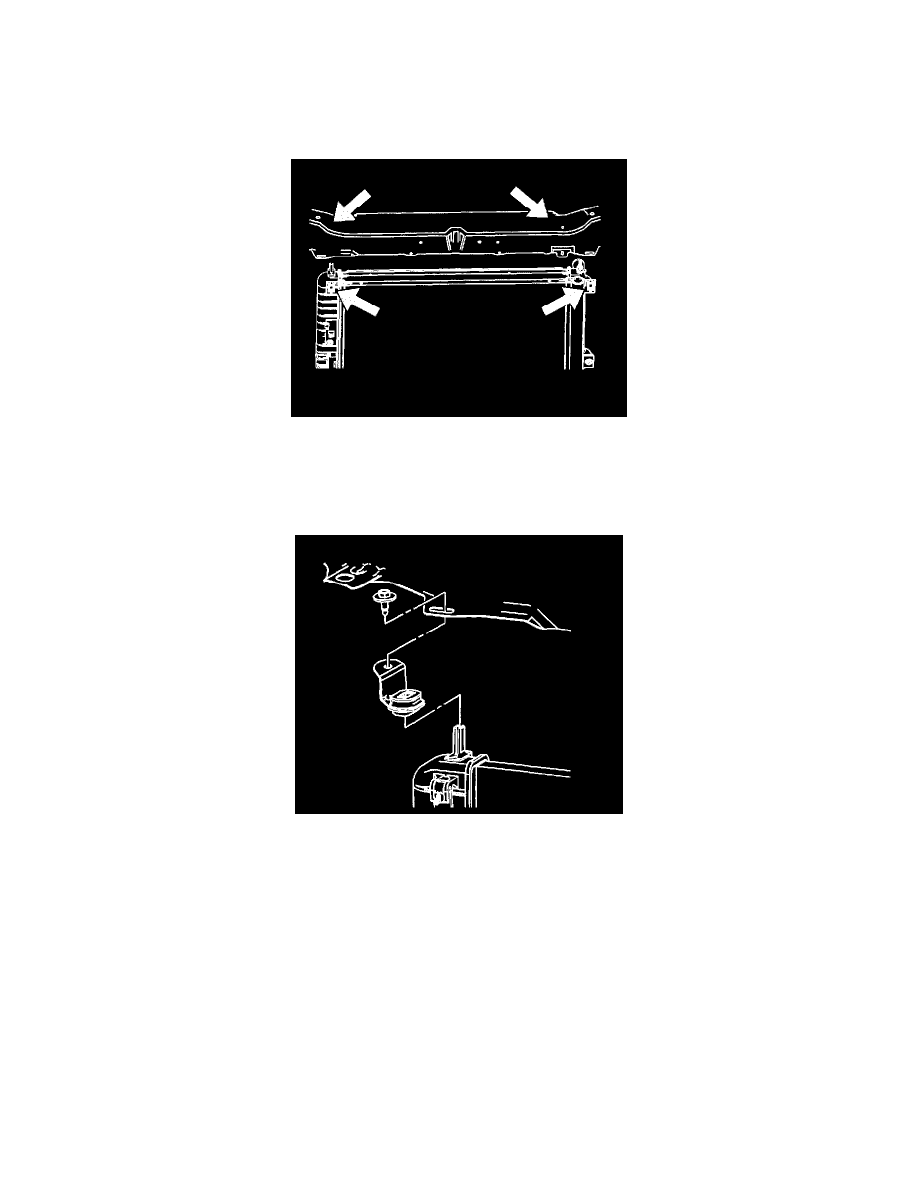

5. Loop a rope around each of the upper 2 tabs of the condenser and tie a rope around the upper tie bar.
6. Remove the upper radiator support bracket bolts.
7. Remove the upper radiator support brackets.
