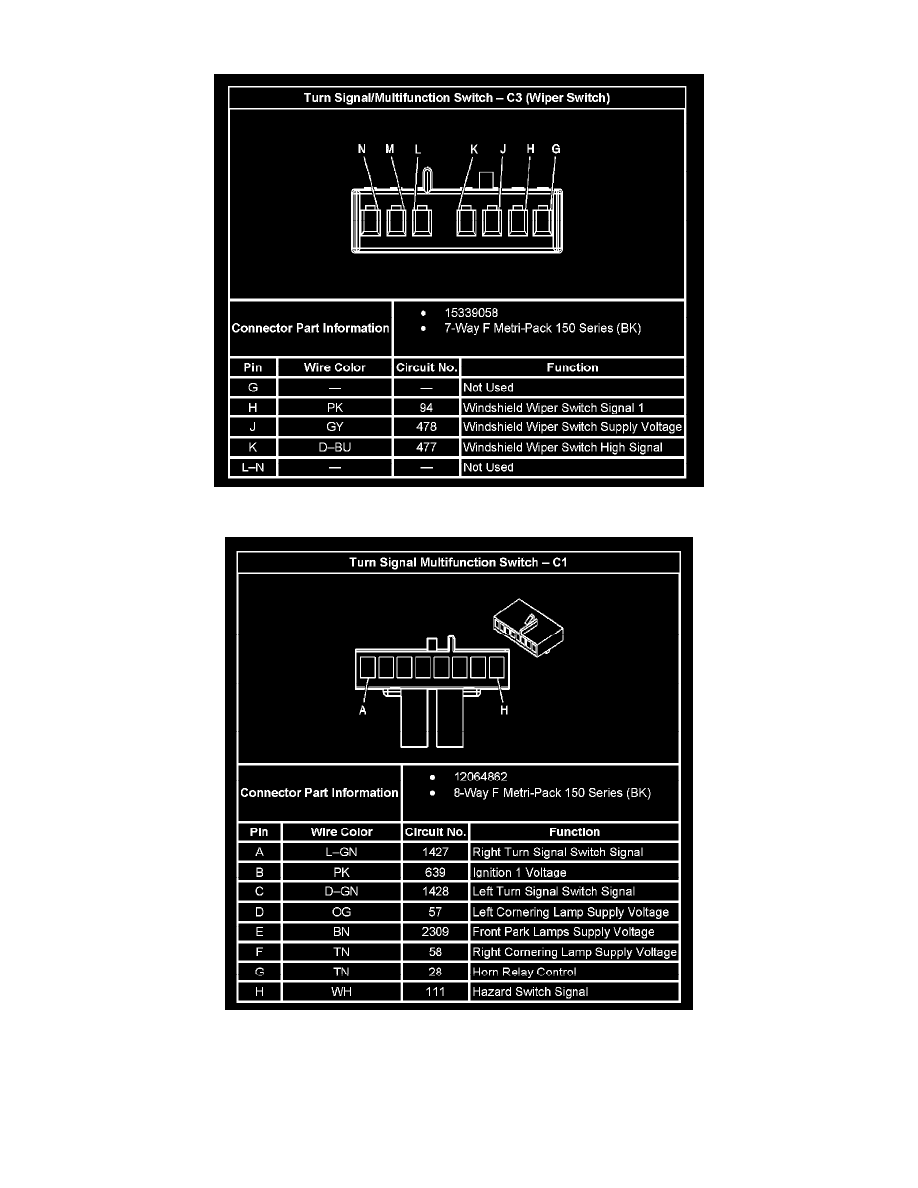

Combination Switch: Diagrams

Turn Signal/Multifunction Switch - C3 (Wiper Switch)

Turn Signal Multifunction Switch - C1
