TrailBlazer 2WD V8-6.0L VIN H (2006)
Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 12307
Page 10

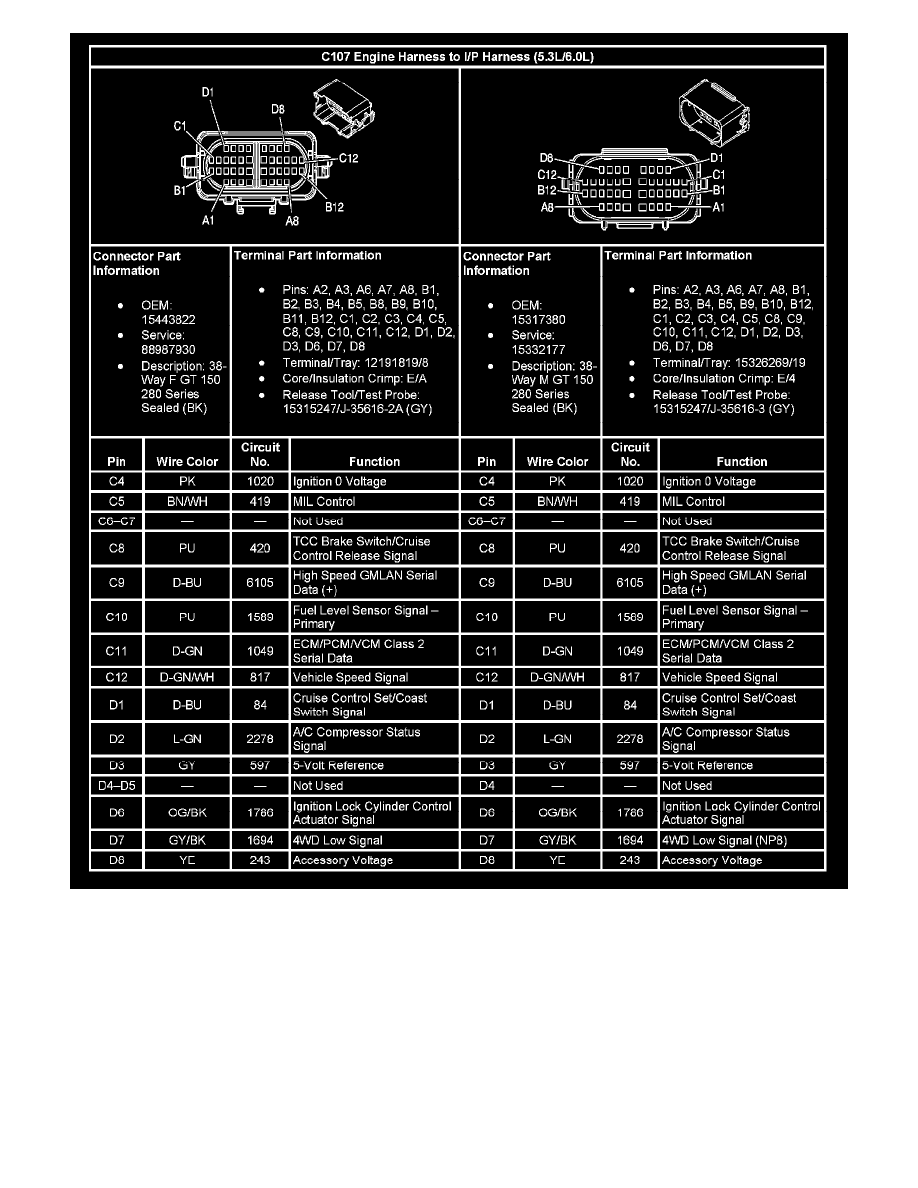

C107 Engine Harness To I/P Harness
Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 12307
