Multiple Junction Connector: Diagrams
C400 - C499

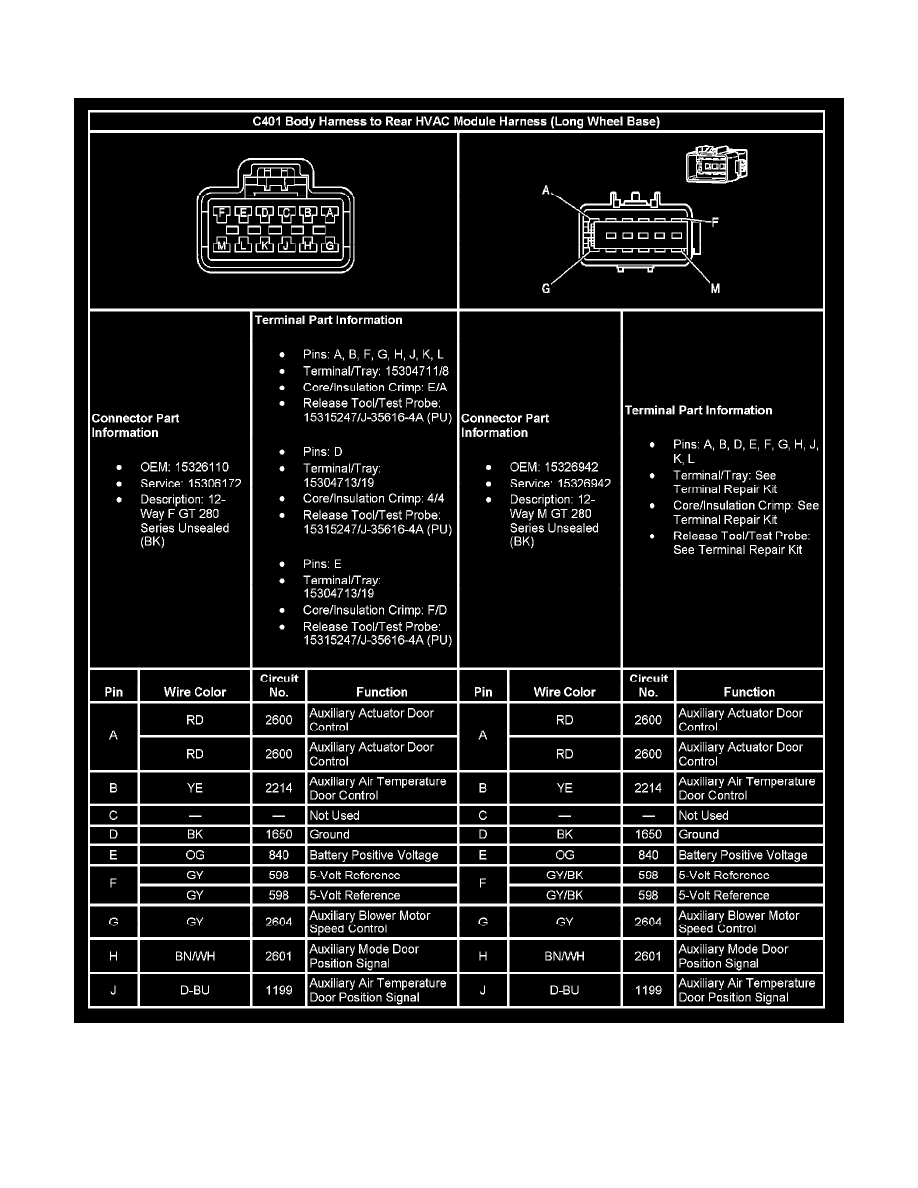

C401 Body Harness To Rear HVAC Module Harness (Long Wheel Base)
