TrailBlazer 2WD V8-6.0L VIN H (2006)
Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 12383
Page 29

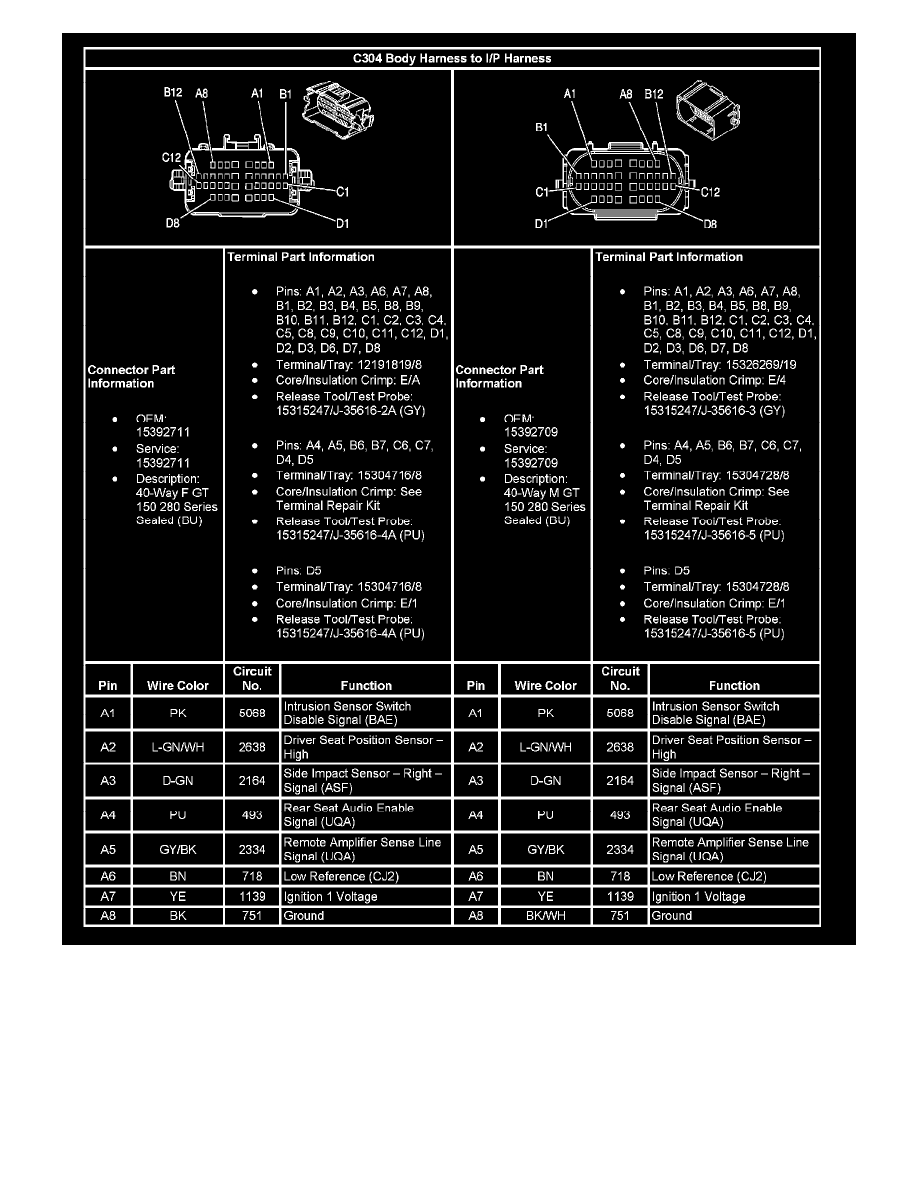

C304 Body Harness To I/P Harness (Part 1)
Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 12383
