TrailBlazer 2WD V8-6.0L VIN H (2006)

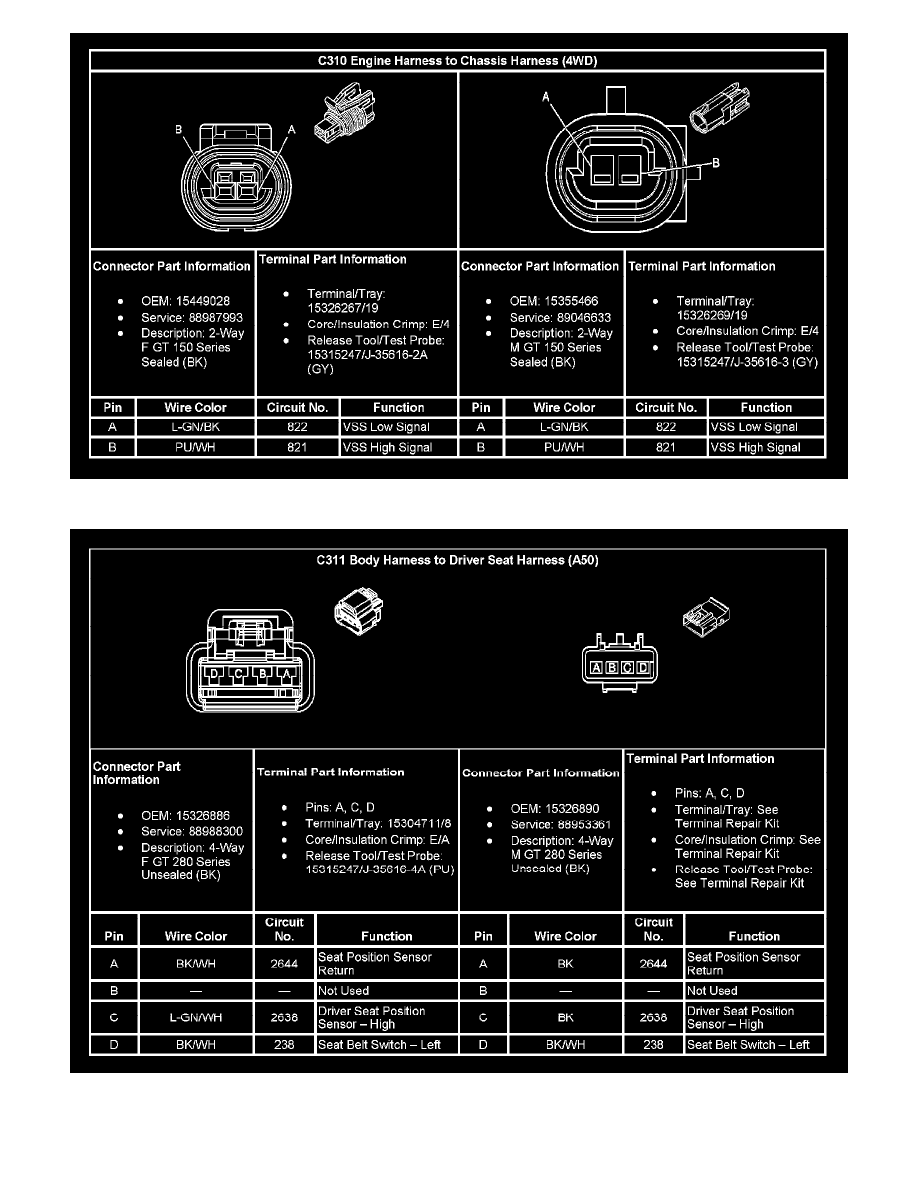

C310 Engine Harness To Chassis Harness (4WD)
C311 Body Harness To Driver Seat Harness (With RPO Code A50)
With RPO Code AR9
