Crossfire SRT-6 V6-3.2L SC VIN N (2005)

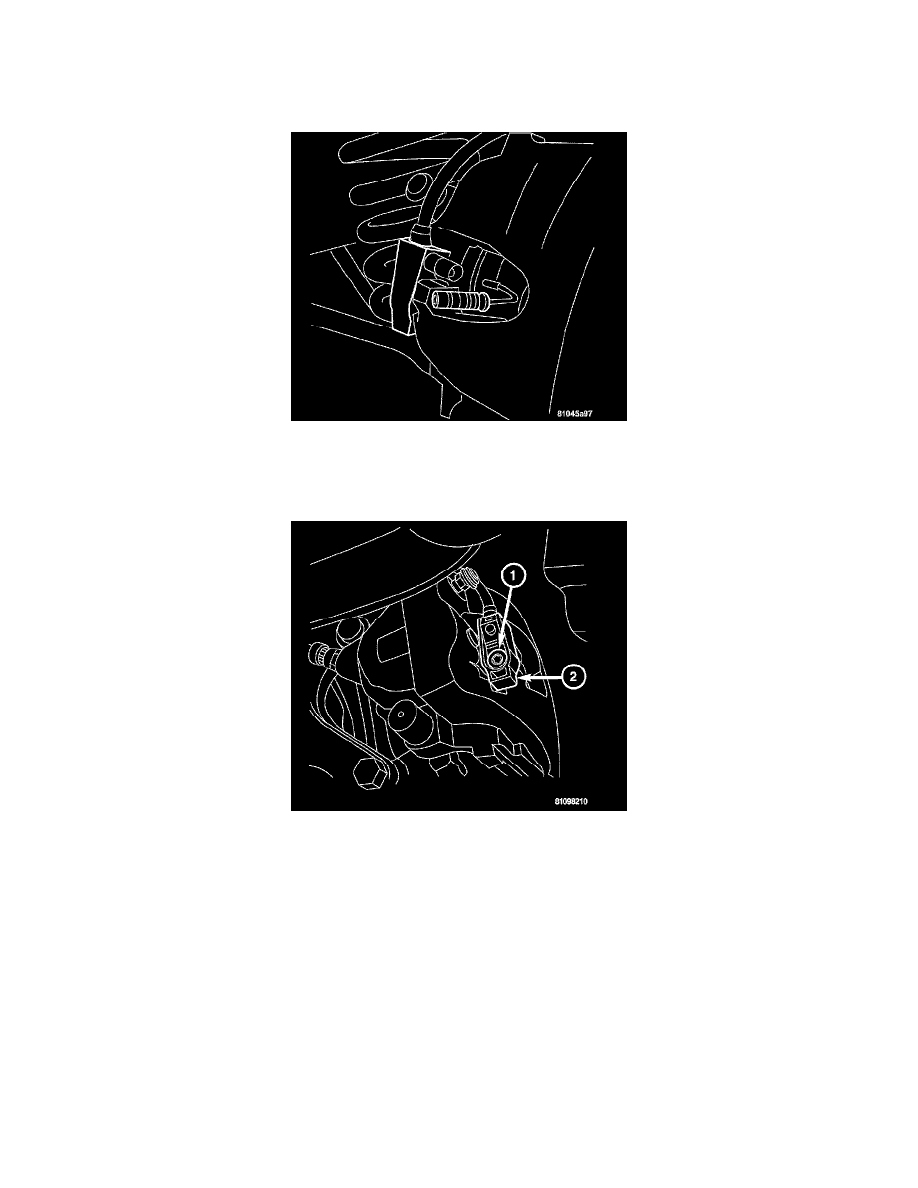

2. Install the brake hose (1) to caliper (2) by holding the brake hose (1) with a wrench and rotating caliper (2) until snug. Fully tighten the brake hose
after the caliper is installed.
CAUTION: Verify the brake hose is not twisted or kinked before installing the caliper to the knuckle.
3. Install the caliper to the knuckle. Install the mounting bolts. Tighten to 55 Nm (41 ft. lbs.).
4. Fill and bleed the brake system.
^
Manual bleeding:
^
Pressure bleeding:
5. Install the wheel and tire assembly.
WARNING: DO NOT MOVE VEHICLE UNTIL FIRM BRAKE PEDAL IS OBTAINED.
6. Lower the vehicle.
7. Pump the brake pedal until the caliper pistons and the brake pads are seated and a firm brake pedal is achieved.
8. Top off the brake fluid reservoir with new fluid if necessary, and check for leaks.
