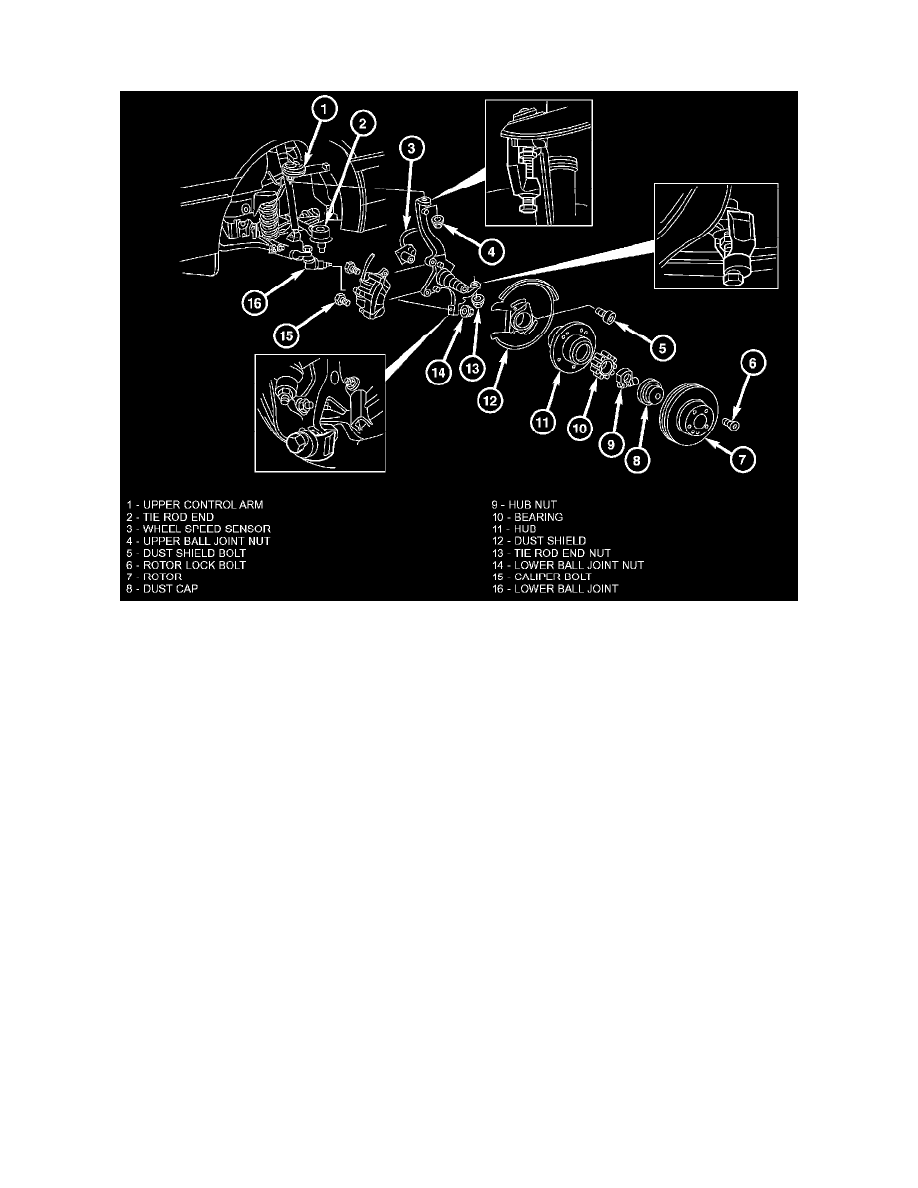

3. Install the tie rod end and nut onto the steering knuckle. Tighten to 50 Nm (37 ft. lbs.).

4. Install the Wheel Speed Sensor (WSS) and bolt. Tighten to 22 Nm (16 ft. lbs.).

5. Install the disc brake dust shield and three hex bolts (1). Tighten to 22 Nm (16 ft. lbs.).
