Sebring Convertible V6-2.7L (2009)

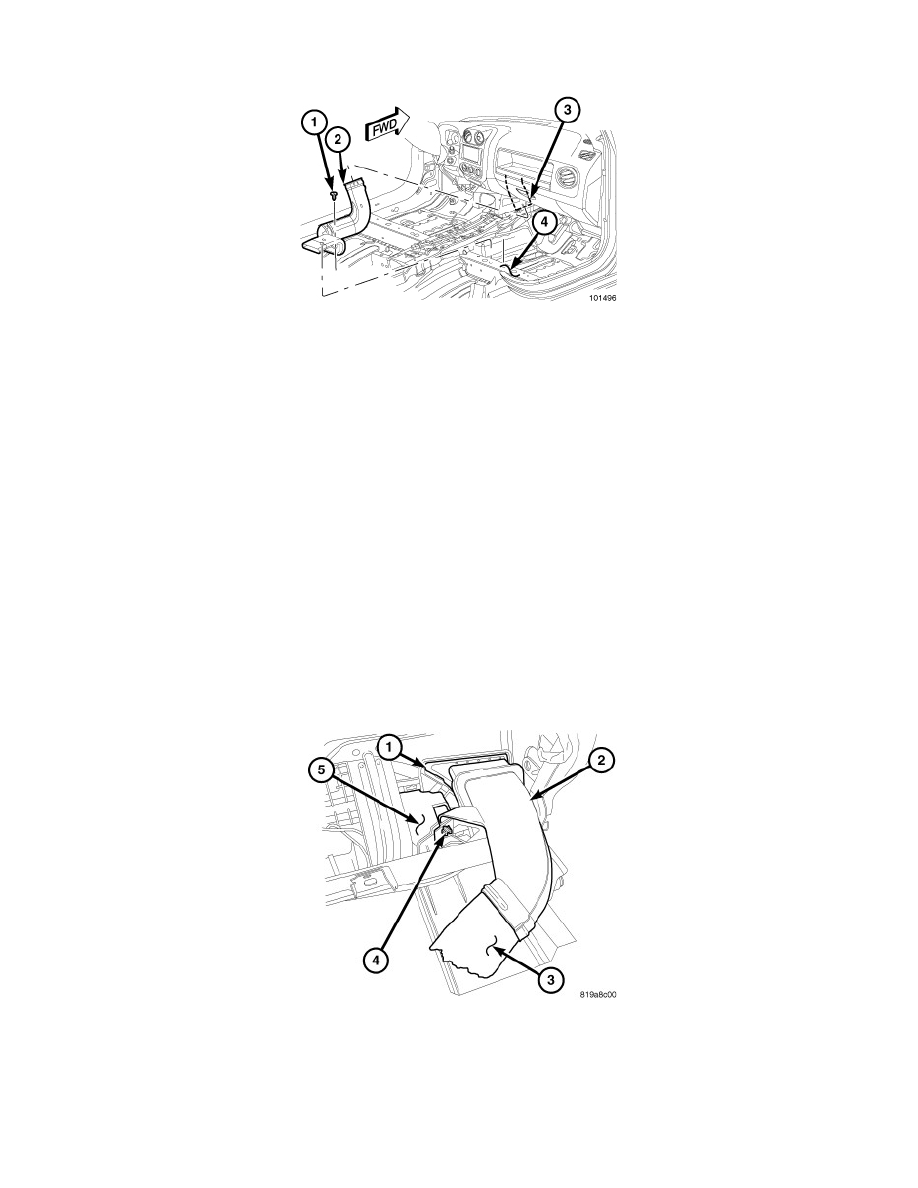

NOTE: Right side rear floor duct shown. Left side duct similar.
1. Connect the rear seat floor duct (2) to the rear floor distribution duct (3). Make sure the ducts are fully engaged to each other.
2. Engage the retainer that secures the rear seat floor duct to the floor support (4) and install the retaining screw (1). Tighten the screw to 2.2 Nm (20
in. lbs.).
3. Reinstall the carpet See: Body and Frame/Interior Moulding / Trim/Carpet/Service and Repair/Carpet - Installation.
4. Install the front seat to the side of the vehicle being serviced .
5. Install the center floor console See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/Shifter Housing - Installation.
Instrument Panel Duct - Removal
REMOVAL
WARNING: Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or
service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to
discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow
these instructions may result in accidental airbag deployment and possible serious or fatal injury.
NOTE: Take the proper precautions to protect the front face of the instrument panel from cosmetic damage while performing this procedure.
NOTE: LHD Chrysler model shown in illustrations. Dodge and RHD models similar.
OUTER DUCTS
NOTE: Passenger side shown. Driver side similar.
1. Remove the instrument panel and place it on a workbench See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service
and Repair/Instrument Panel - Removal.
2. Remove the left and right instrument panel air outlet (1) from the instrument panel See: Air Register/Service and Repair/Air Outlet - Removal.
3. Remove the screw (4) that secures the each outer instrument panel duct (2) to the instrument panel top cover (5).
4. Disconnect both outer instrument panel ducts from the center instrument panel duct (3) and remove the outer ducts.
