Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
Tape Player: Service and Repair
REMOVAL
1. Remove HVAC switch bezel.

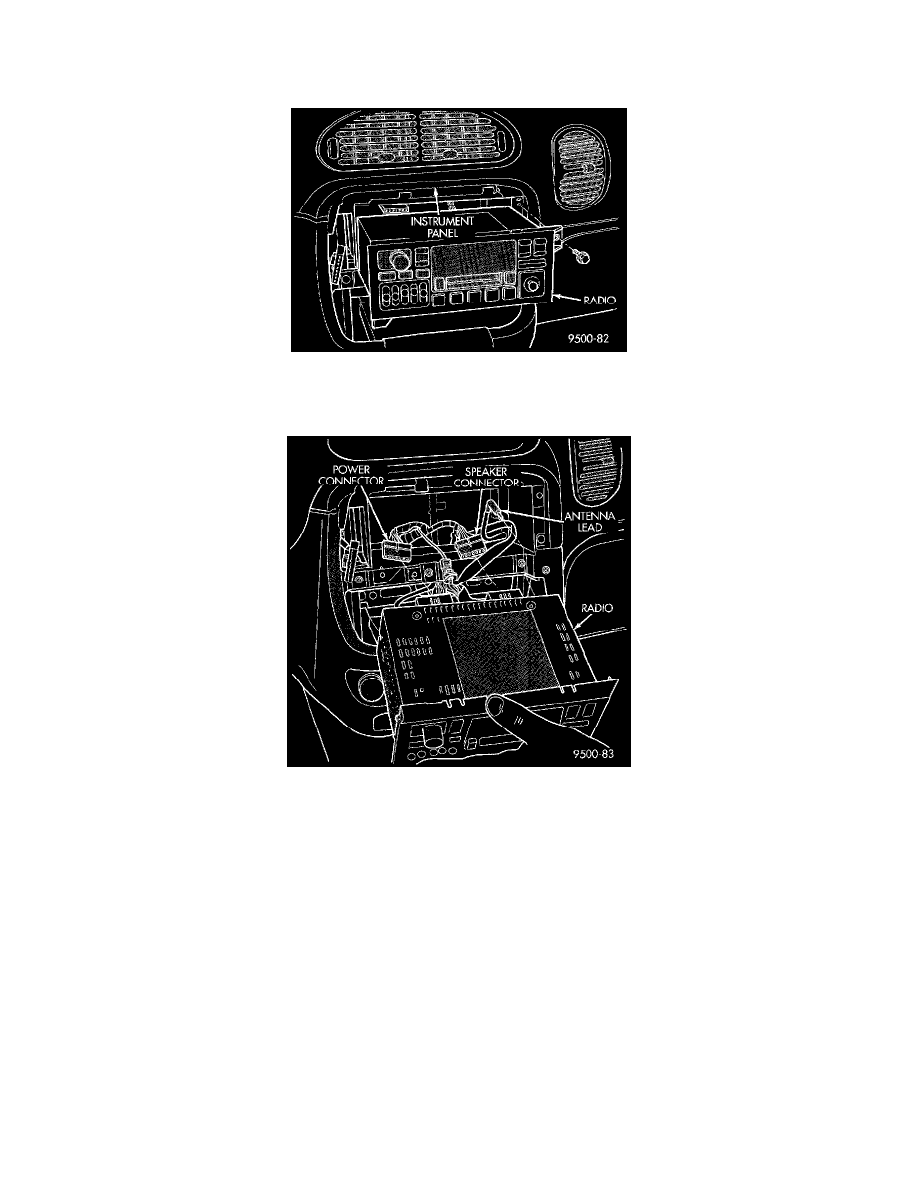

Radio
2. Remove screws holding radio to instrument panel.
Radio Connectors
3. Pull radio rearward to gain access to back of radio.
4. Remove bolt holding ground strap to back of radio.
5. Disconnect antenna cable from back of radio.
6. Disconnect the wire connectors from back of radio.
7. Remove radio from vehicle.
INSTALLATION
-
For Installation, reverse the above procedures.
