Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
Trip Computer: Service and Repair
Compass Mini-Trip Computer (CMTC) Module
REMOVAL
1. Disconnect battery negative cable.
2. Remove overhead console.

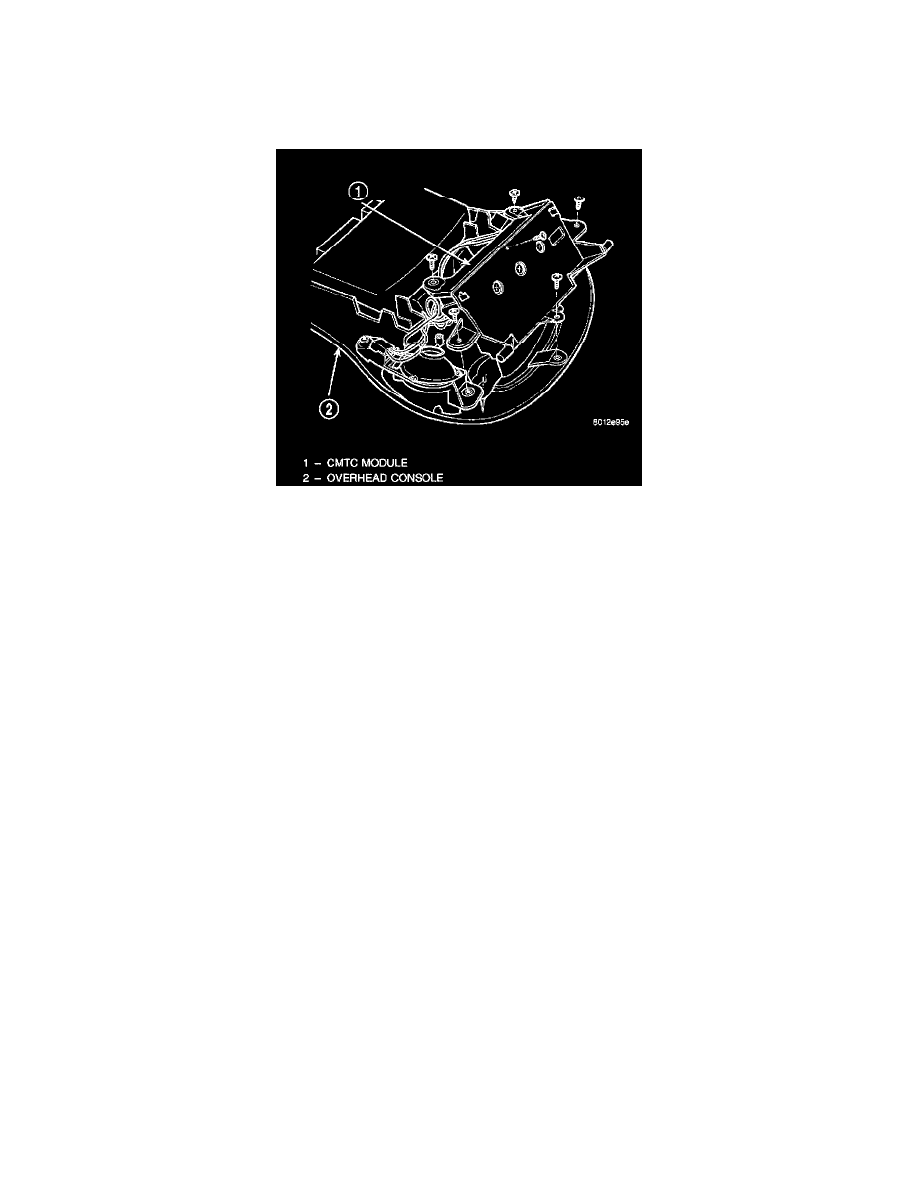

Compass Mini-Trip Computer
3. Remove the six screws holding CMTC module to overhead console.
4. Remove CMTC module from console.
INSTALLATION
-
For installation, reverse the above procedures.
