Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

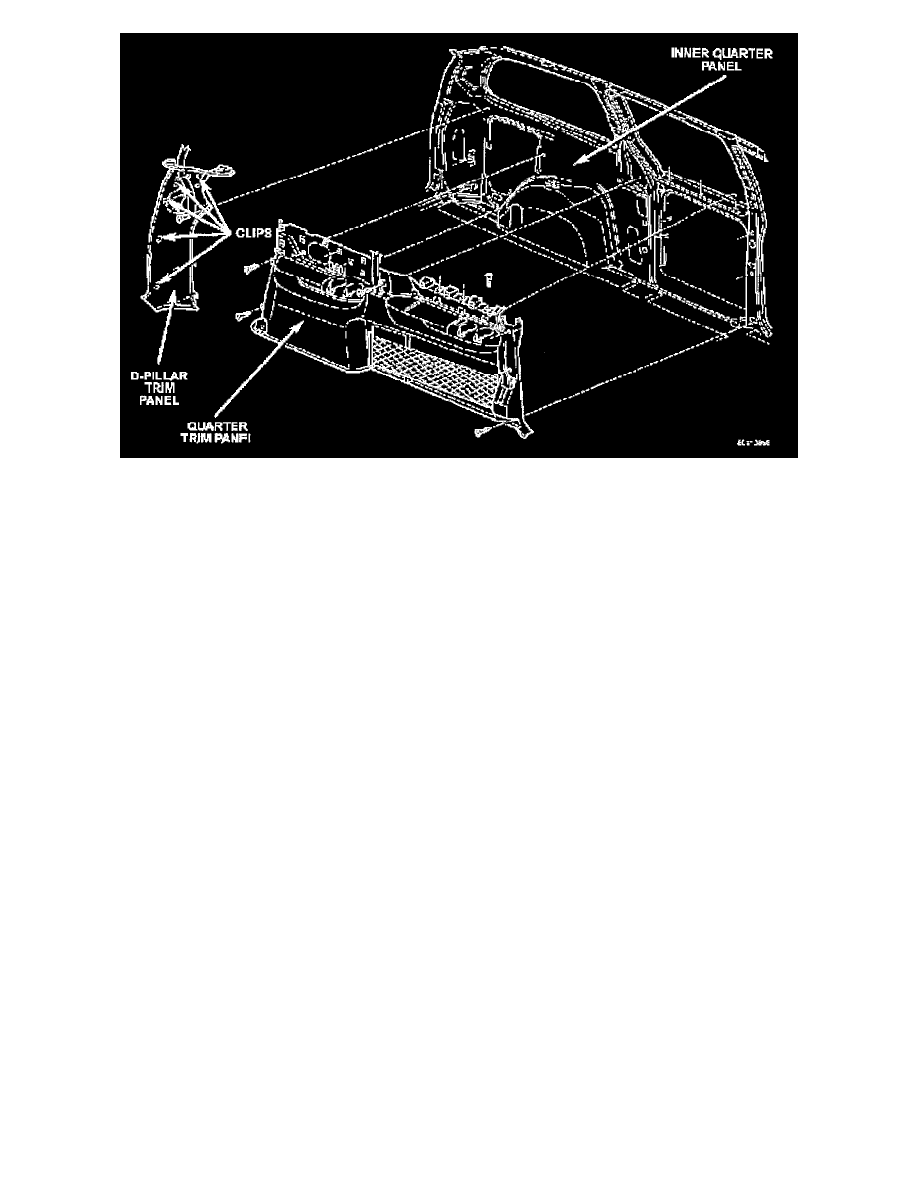

Left Quarter and D-Pillar Trim Panels - SWB
7. Disengage hidden clips holding trim to D-pillar.
8. Disengage speaker wire connector, if equipped.
9. Pass seat belt through slot in D-pillar trim panel on short wheel base vehicle.
10. Separate D-pillar trim from vehicle.
INSTALLATION
1. Pass seat belt through slot in D-pillar trim panel on short wheel base vehicle.
2. Position D-pillar trim panel on vehicle.
3. Engage speaker wire connector to speaker, if equipped.
4. Align locating pins on backside of trim panel to mating holes in inner quarter panel.
5. Engage hidden clips to hold trim to D-pillar.
6. Install screws to hold trim to D-pillar.
7. Install jack storage cover.
8. Install bolt to hold second rear seat belt lower anchor to quarter on short wheel base vehicle.
9. Install second rear seat belt turning loop on long wheel base vehicle.
10. Install liftgate sill plate.
11. Install rear header trim cover.
Quarter Trim Bolster
QUARTER TRIM BOLSTER
The speaker grille in the quarter trim bolster is not removable. The trim bolster must removed to service the speaker.
