Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
Power Door Lock Actuator: Service and Repair

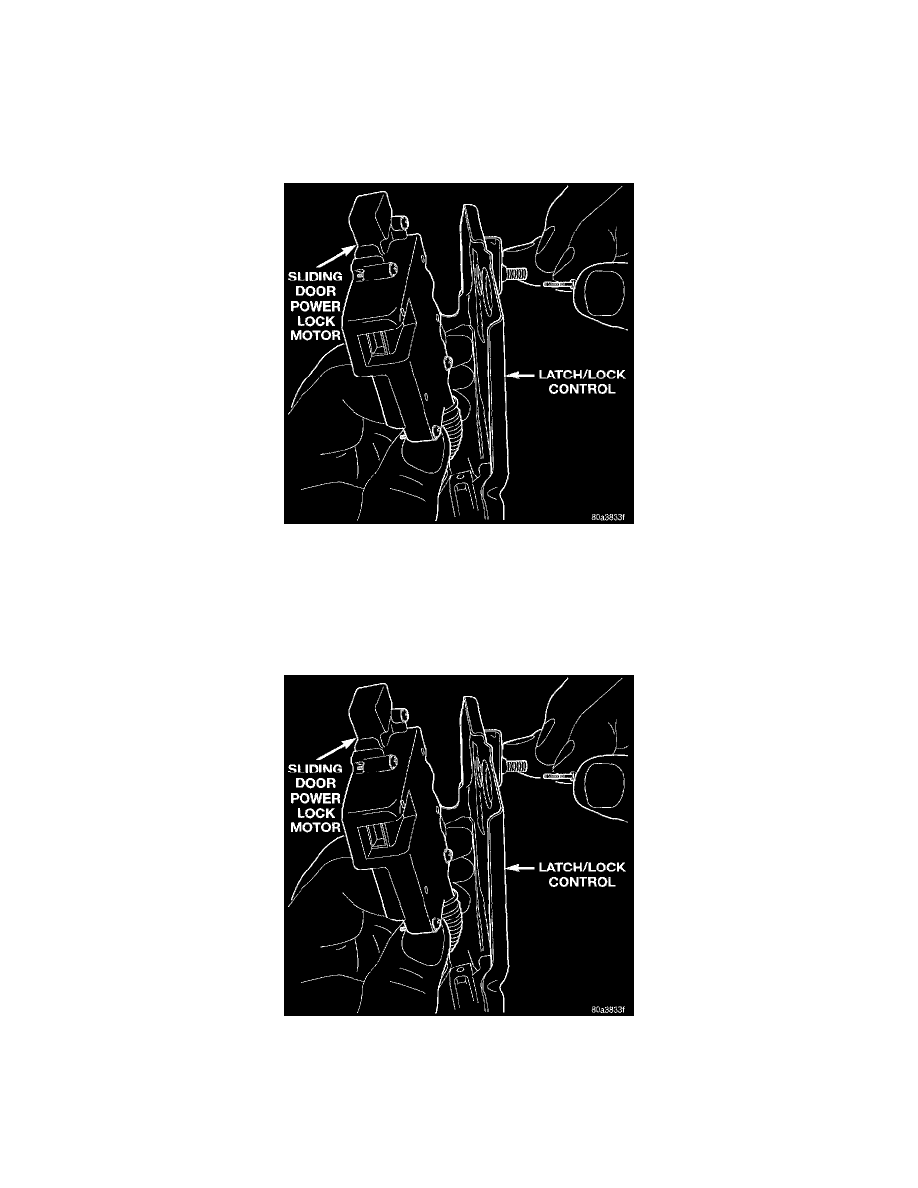

Sliding Door Lock Motor
REMOVAL
1. Remove sliding door trim panel.
2. Remove watershield as necessary
3. Remove latch/lock control cover.
4. Remove latch/lock control.
Sliding Door Lock Motor
5. Remove screws holding door lock motor to latch/lock control.
6. Remove lock motor from control.
INSTALLATION
1. Install lock motor from control.
Sliding Door Lock Motor
2. Install screws holding door lock motor to latch/lock control.
3. Install latch/lock control.
4. Install latch/lock control cover.
5. Install watershield as necessary
