Town & Country Van AWD V6-230 38L Exhaust Crossover Pipe Issue
5.

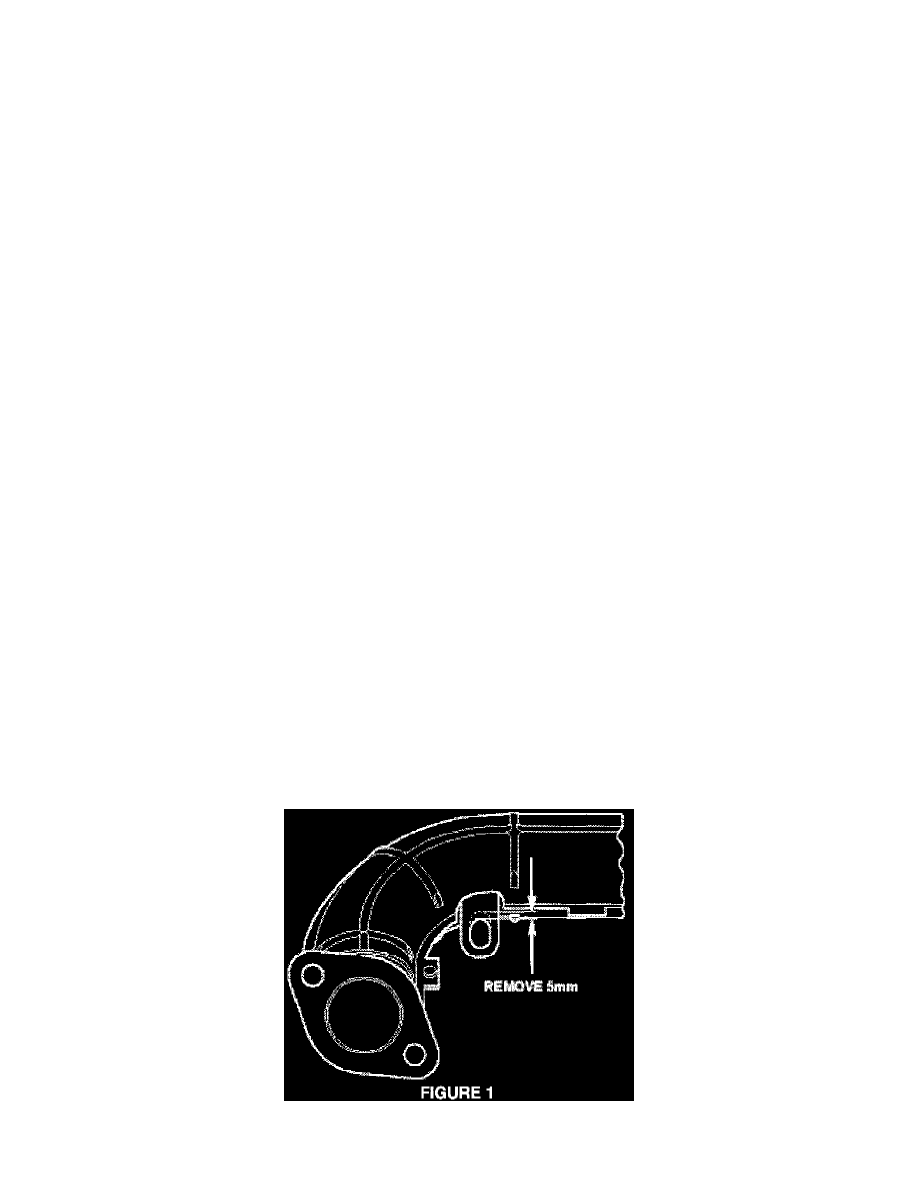

Use a die grinder or file to enlarge the slot in the support bracket of the crossover pipe.
6.
Discard the original crossover pipe flange gaskets.
7.
Install the crossover pipe to exhaust manifolds using new flange gaskets, p/n 04448149.
8.
Torque the crossover pipe to exhaust manifold attaching bolts to 54 Nm (40 ft. lbs.).
9.
Torque the crossover pipe bracket to cylinder head attaching bolt to 54 Nm (40 ft. lbs.).
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No:
11-10-01-90
0.7 Hrs.
FAILURE CODE: XX - Service Adjustment
