Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

Page 4
background image

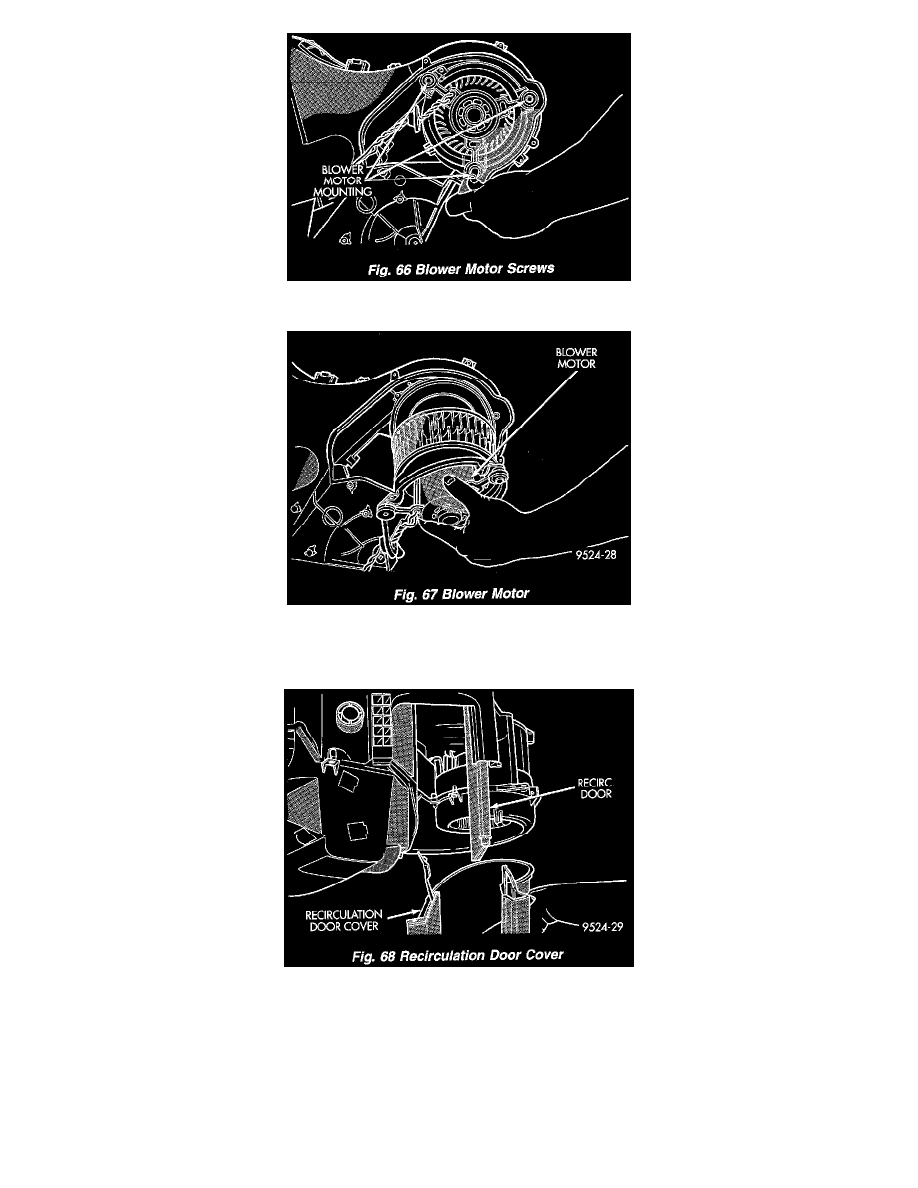

Blower Motor Screws

Blower Motor

5. Remove blower motor screws. Remove blower motor from housing.

Recirculation Door Cover

6. Remove recirculation door cover.
