Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

Page 1
background image

Hazard Warning Flasher: Testing and Inspection

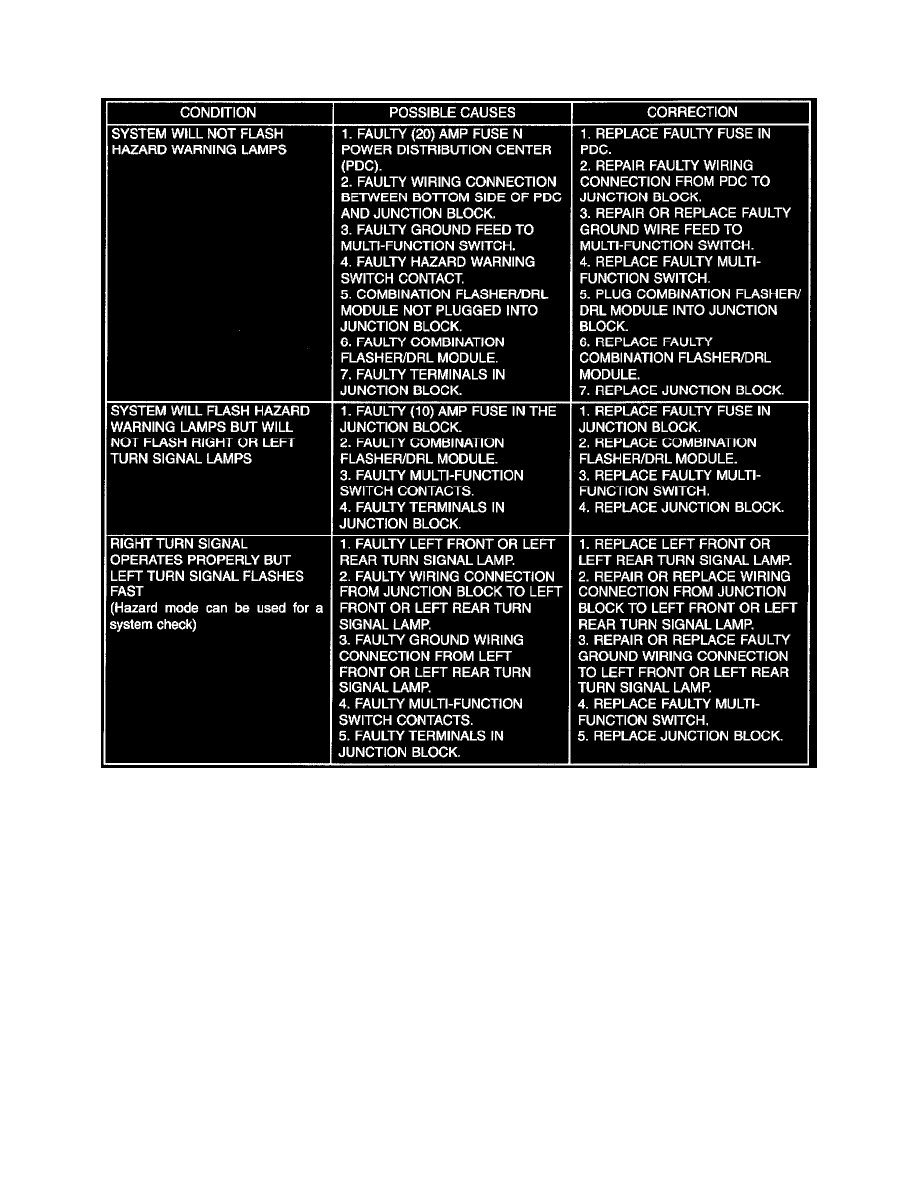

Combination Flasher Diagnosis Without DRL

Combination Flasher Diagnosis Without DRL (Part 1 Of 2)
