Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

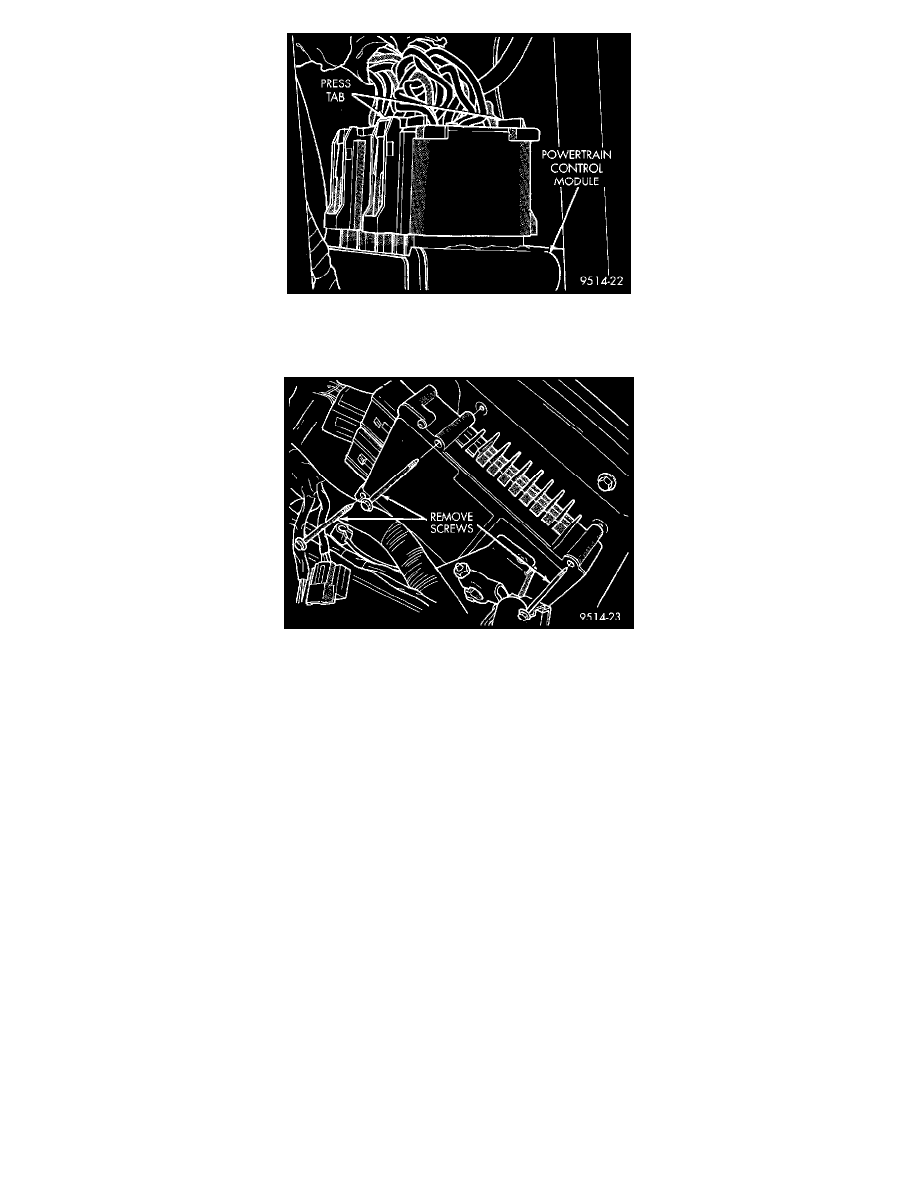

Fig 33 PCM 40 Way Connectors
8. Squeeze tabs on 40-way connector. Pull connector rearward to remove from PCM (Fig. 33). Remove both way connectors.
Fig 34 PCM Removal/Installation
9. Remove 3 screws holding PCM to fender (Fig. 34).
10. Remove PCM from vehicle.
INSTALLATION
1. Connect 2 40-Way electrical connectors to PCM (Fig. 33).
2. Install PCM. Tighten mounting screws.
3. Install PDC bracket.
4. Install battery.
NOTE: Use a DRB or equivalent scan tool to reprogram the new PCM with the vehicles original identification number (VIN) and mileage. If this is not
done a diagnostic trouble code (DTC) may be set.
IMPORTANT NOTE: If the Powertrain Control Module has been changed and the correct VIN and mileage have not been programmed, a DTC will
be set in the ABS and Air bag modules. In addition, if the vehicle is equipped with a Smart Key Immobilizer Module (SKIM), Secret Key data must be
updated to enable starting.
For ABS and Air Bag systems:
ACTION:
1. Enter correct VIN and Mileage in PCM.
2. Erase codes in ABS and Air Bag modules.
For SKIM theft alarm:
ACTION:
1. Connect the DRB to the data link connector.
2. Go to Engine, Misc. and place the SKIM in secured access mode, by using the appropriate PIN code for this vehicle.
