Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

Page 1
background image

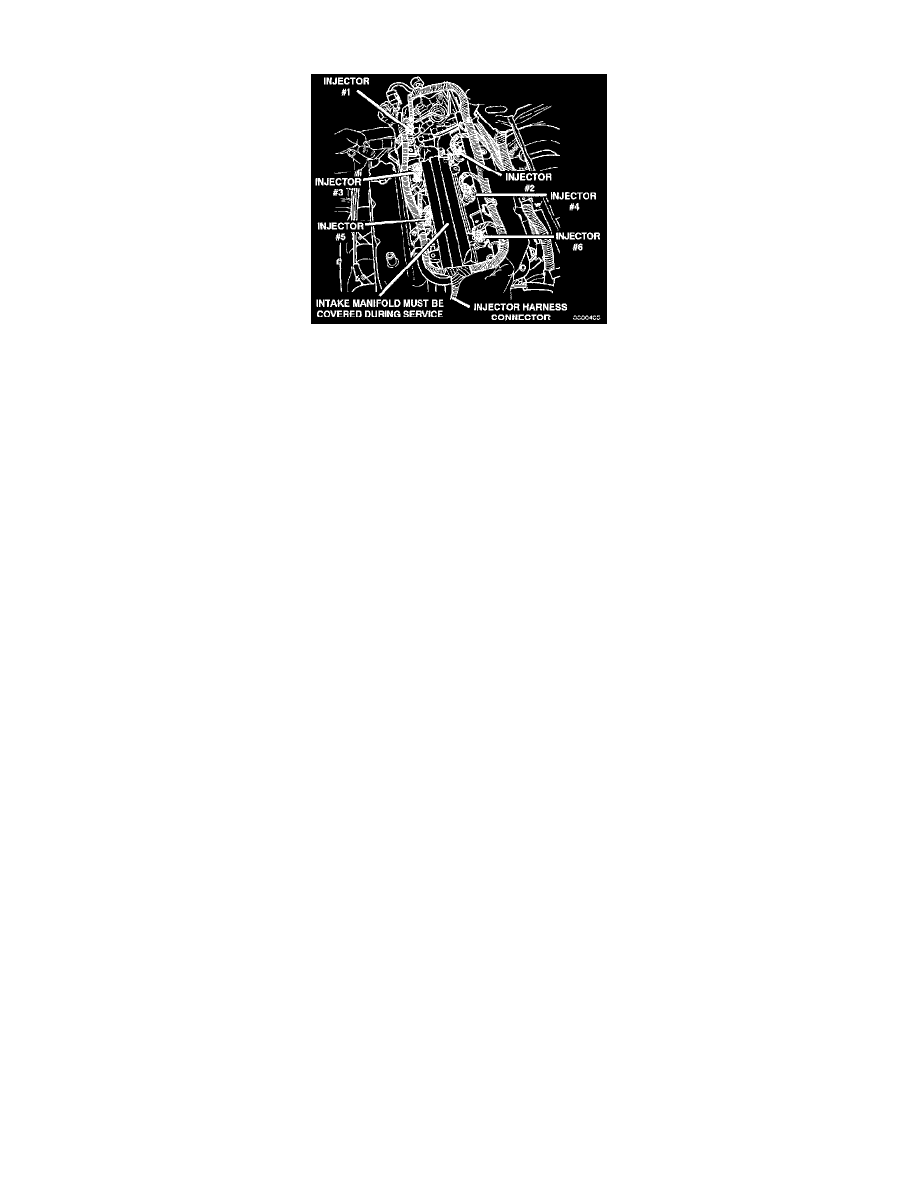

Fuel Injector: Locations

Fuel Injectors

The fuel injectors are attached to the fuel rail which mounts to the lower intake manifold under the air intake plenum.
