Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
13. Remove Direct Ignition System (DIS) coils (Fig. 50).
14. Remove generator bracket to intake manifold bolt.

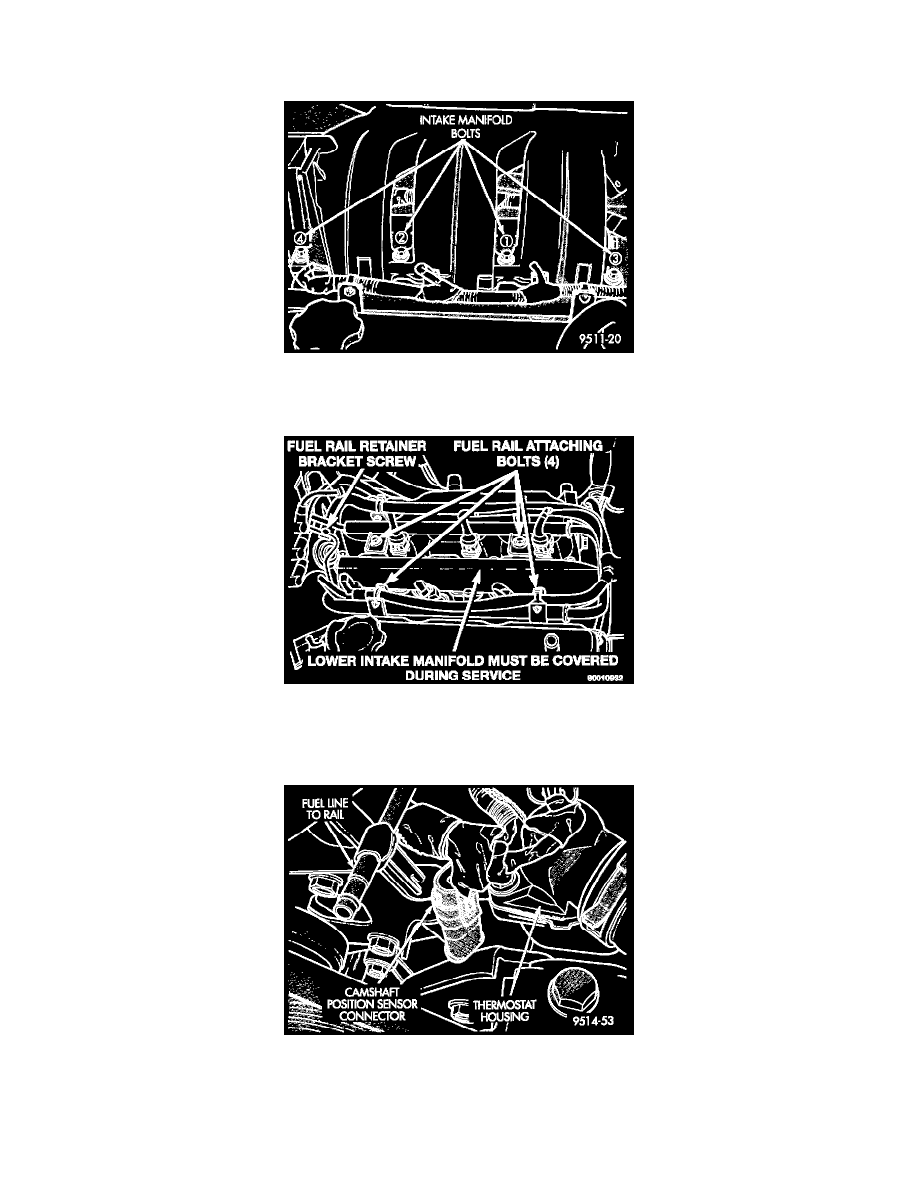

Fig 51 Intake Manifold Bolts
15. Remove intake mounting manifold bolts and rotate manifold back over rear valve cover (Fig. 51).
Fig 52 Fuel Rail Attaching Bolts
16. Cover intake manifold with suitable cover when servicing (Fig. 52).
17. Remove fuel tube retainer bracket screw and fuel rail attaching bolts (Fig. 52). Spread the retainer bracket to allow fuel tube removal clearance.
Fig 53 Camshaft Position Sensor Connector
18. Disconnect camshaft position sensor (Fig. 53) and engine coolant temperature sensor.
