Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
8.

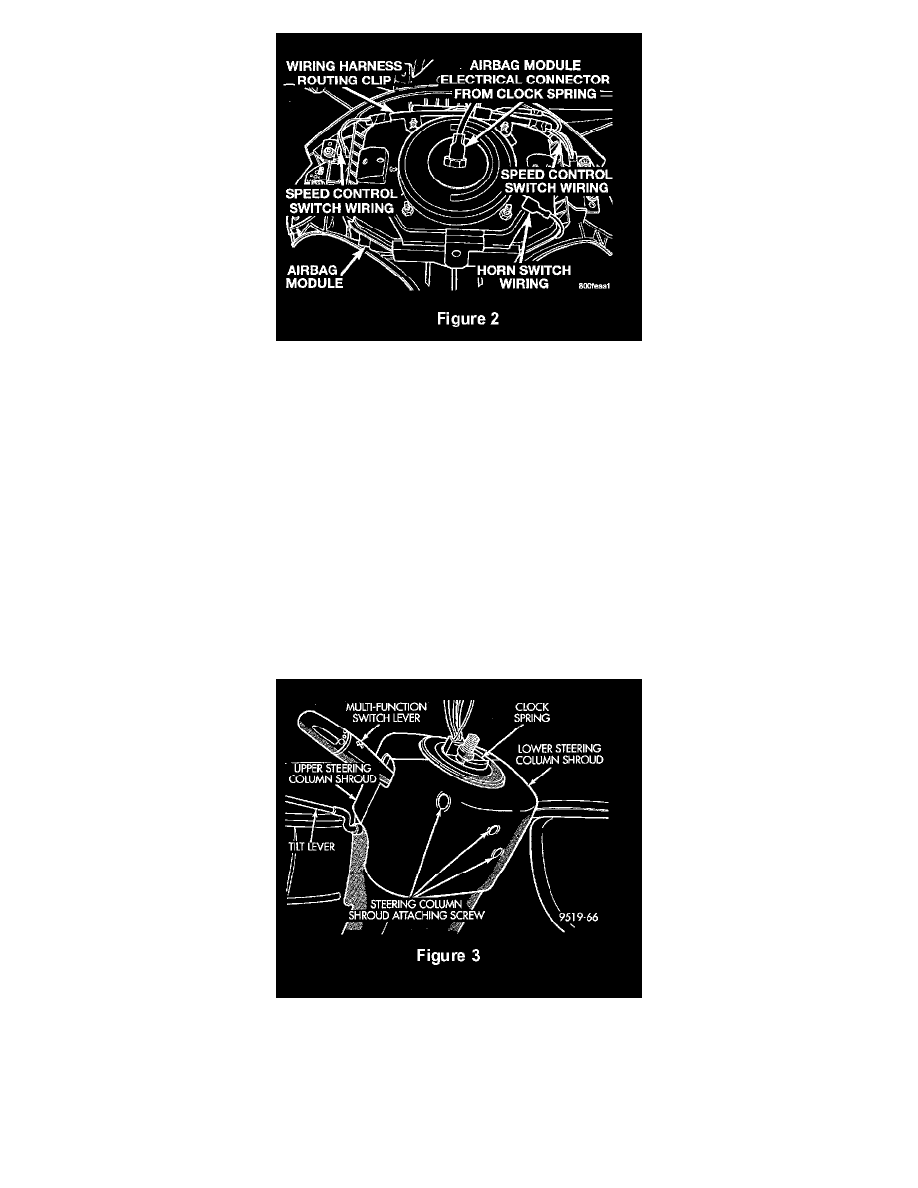

Disconnect the clockspring horn switch wire harness connector from the horn switch wire connector on the back of the airbag module (Figure 2).
9.
Disconnect the clockspring airbag wire harness connector (Figure 2) from the back of the airbag module by firmly grasping and pulling, or gently
prying, the connector.
NOTE:
Do NOT pull on the clockspring wire harness to disengage the connector from the airbag module connector receptacle.
10.
Disconnect the clockspring wire harness connectors from the speed control switches and steering wheel mounted radio controls (if equipped)
(Figure 2).
11.
Remove the airbag module and set it aside.
12.
Remove the steering wheel nut.
13.
Remove the steering wheel damper from the steering wheel (if equipped).
14.
Remove the steering wheel from the steering column using a steering wheel puller (Special Tool C-3428-B).
15.
Remove the three (3) screws that attach the upper and lower shrouds to the steering column, then remove the shrouds from the steering column
(Figure 3).
