Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

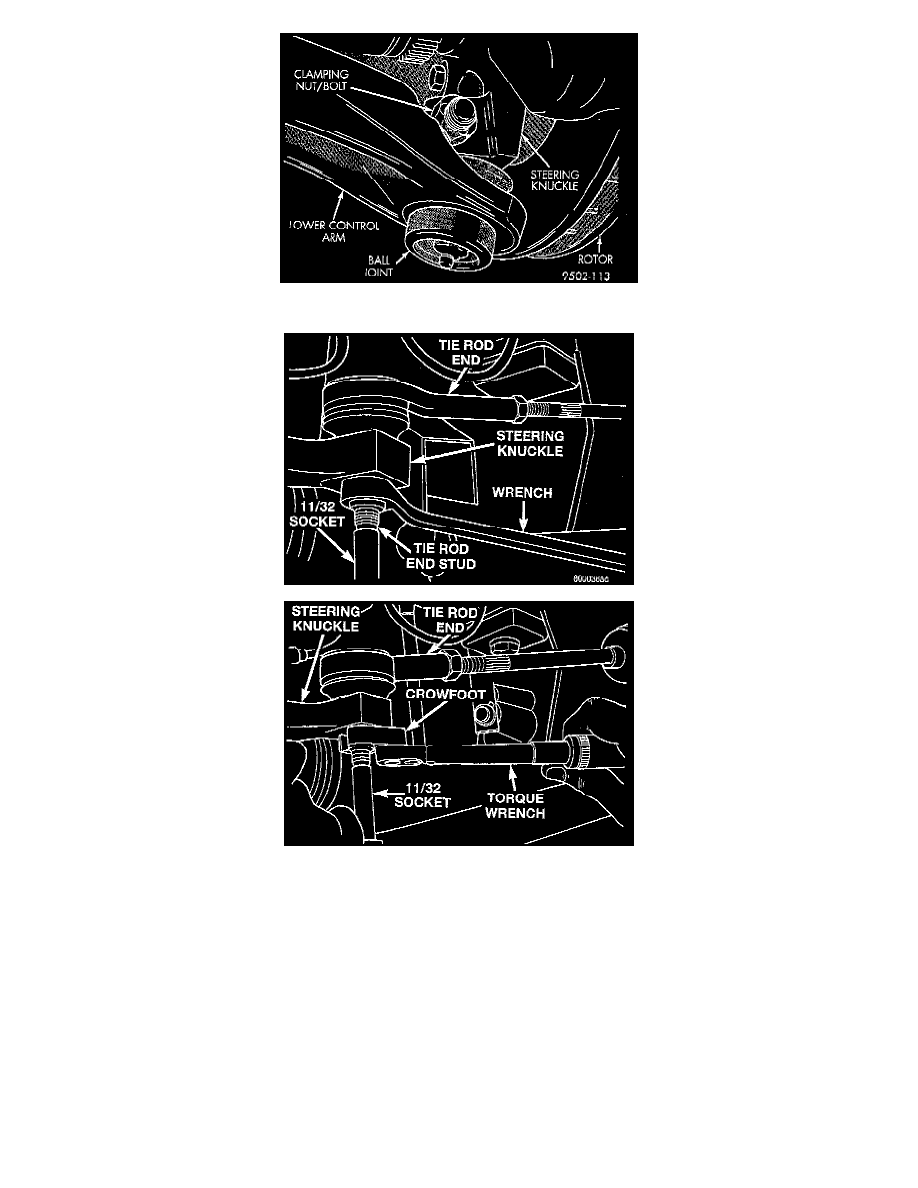

4. Install a NEW steering knuckle to ball joint stud, clamping bolt and nut. Tighten the clamping bolt and nut to a torque of 145 Nm (105 ft. lbs.).
5. Install tie rod end into steering knuckle. Start attaching nut onto stud of tie rod end. While holding stud of tie rod end stationary using a 11/32
socket, tighten tie rod end to steering knuckle attaching nut. Then using a crowfoot and 11/32 socket, tighten the tie rod end attaching nut to a
torque of 54 Nm (40 ft. lbs.).
