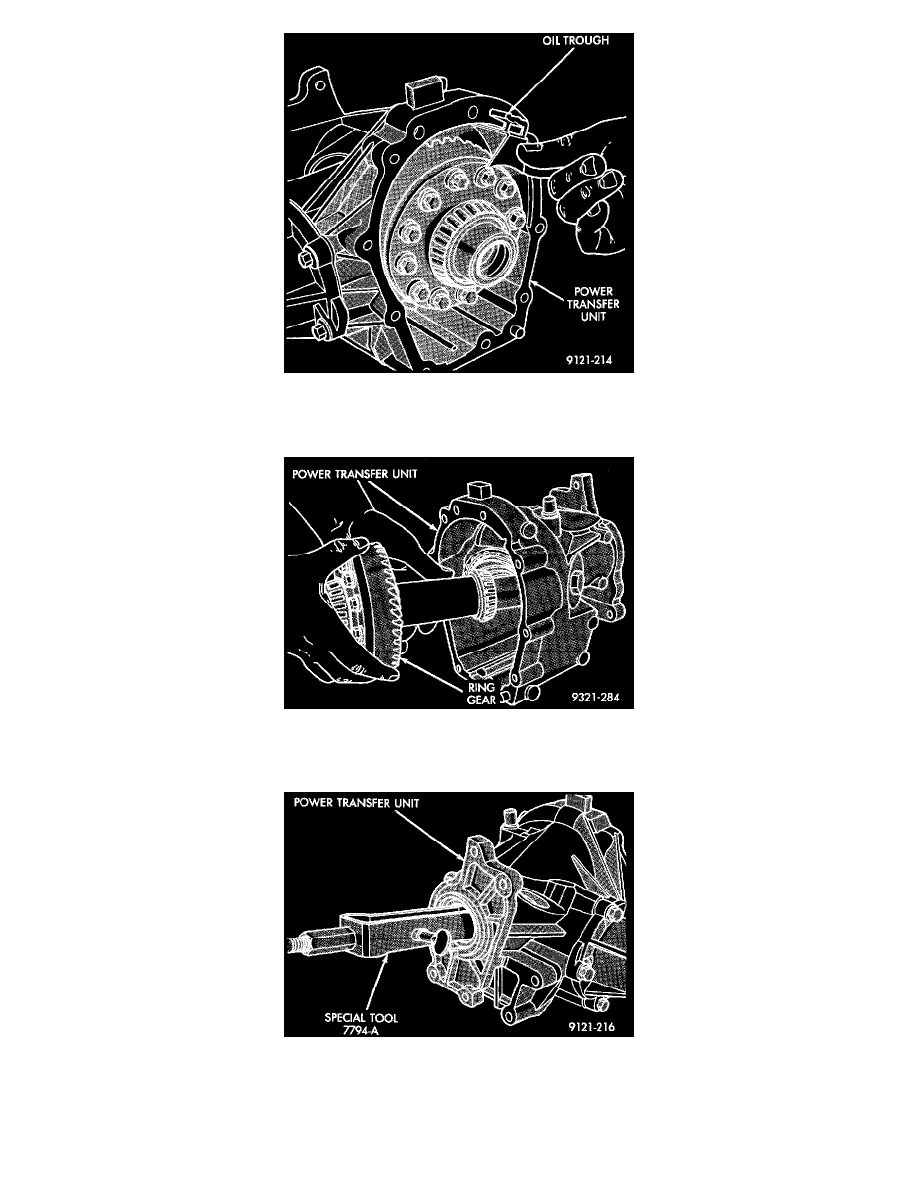

Oil Through

3. Remove ring gear oil trough.

Input Shaft And Ring Gear Removal

4. Remove input shaft and ring gear from case.

Seal Removal

5. Use Special Tool No. 7794-A (seal puller) to remove seal.

INSTALLATION
