Wiper Blade: Service and Repair
Rear Wiper Blade

REMOVAL

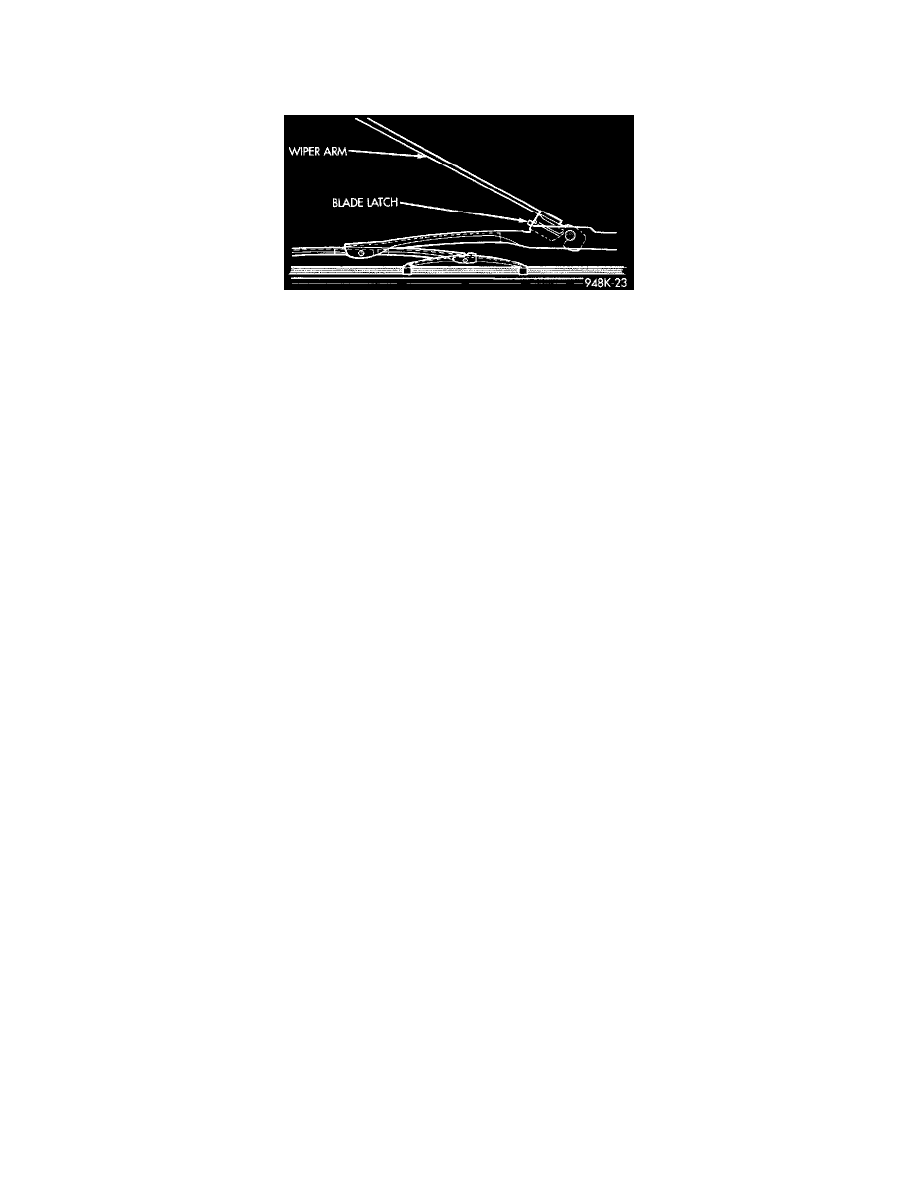

Rear Wiper Arm

1. Lift wiper blade away from rear window.
2. Release latch holding blade to wiper arm.
3. Remove blade from wiper arm.

INSTALLATION

-

For Installation, reverse the above procedures.
