Voyager L4-2.4L VIN B (2001)
Keyless Entry Module: Service and Repair
Remote Keyless Entry Module Replacement
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.
3. Remove screws holding RKE module to instrument panel.

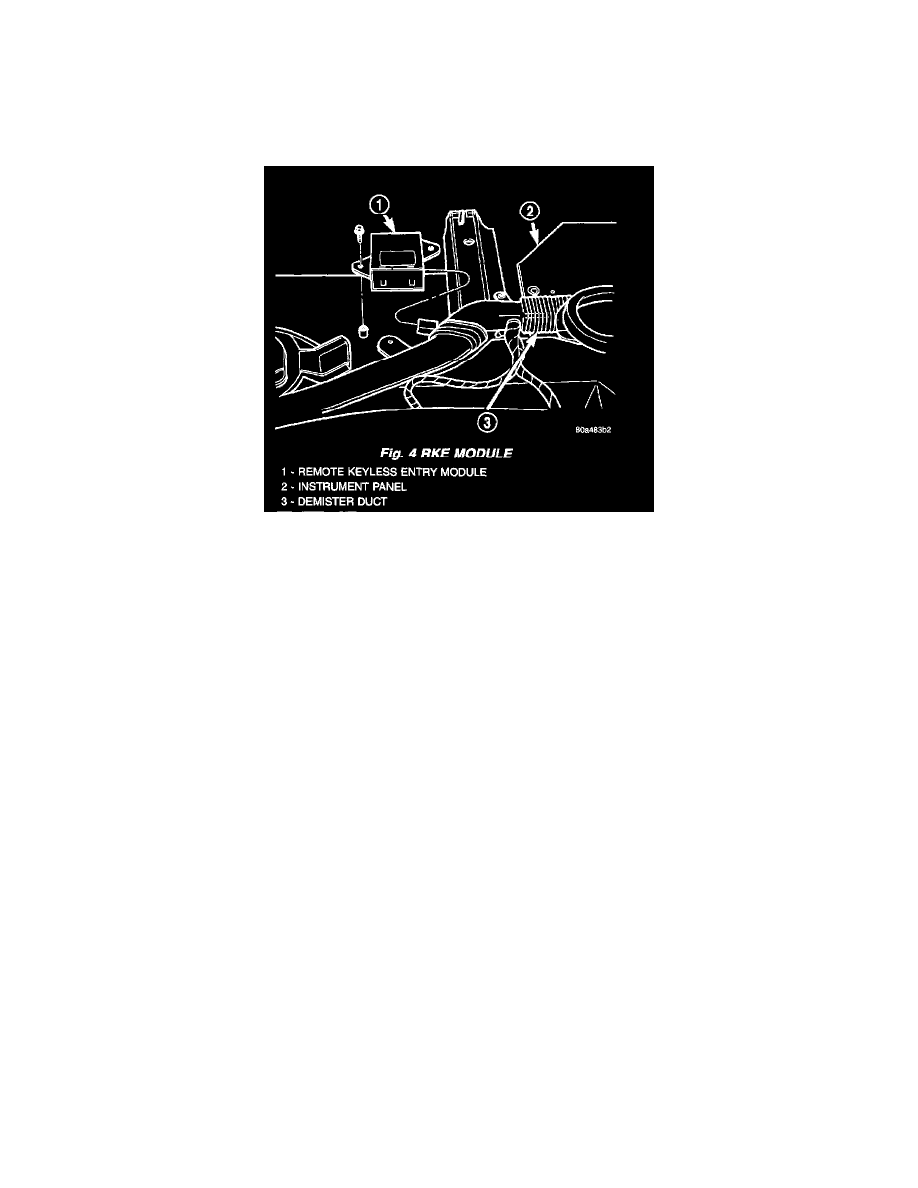

Fig.4 RKE Module
4. Disconnect wire connector from RKE module.
5. Remove the RKE module from vehicle.
INSTALLATION
1. Position the RKE module and install the screws.
2. Connect the wire connector to the RKE module.
3. Install the instrument panel top pad.
4. Connect the battery negative cable.
