Voyager L4-2.4L VIN B (2001)

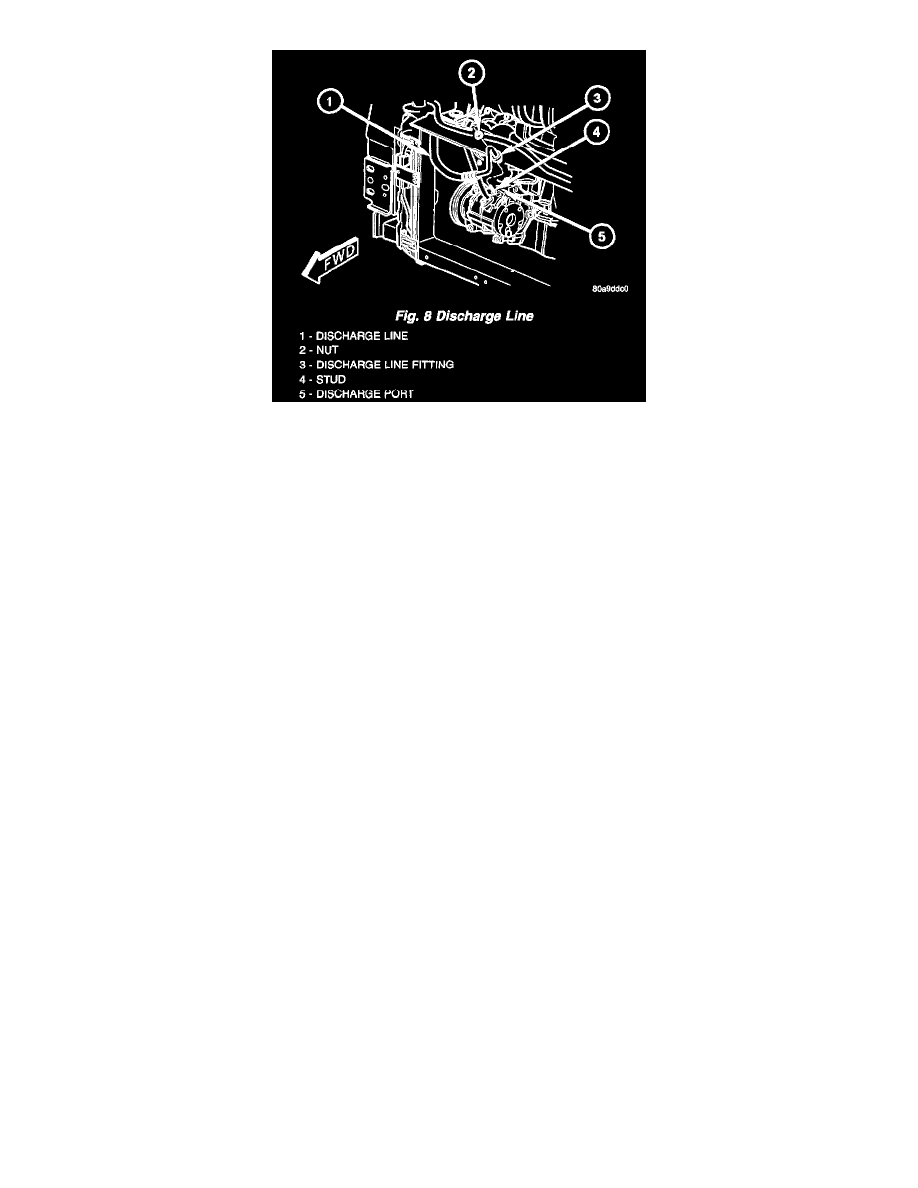

Fig.8 Discharge Line
9. Remove the nut that secures the discharge line fitting to the top of the compressor.
10. Disconnect the discharge line fitting from the compressor discharge port.
11. Remove the seal from the discharge line fitting and discard.
12. Install plugs in, or tape over the opened discharge line fitting and the compressor discharge port.
13. Remove the discharge line from the engine compartment.
INSTALLATION
1. Position the discharge line into the engine compartment.
2. Remove the tape or plugs from the compressor discharge port and the discharge line fitting.
3. Lubricate a new rubber O-ring seal with clean refrigerant oil and install it on the discharge line fitting.
4. Reconnect the discharge line fitting to the compressor discharge port on the top of the compressor.
5. Install and tighten the nut that secures the discharge line fitting to the compressor. Tighten the nut to 23 Nm (17 ft. lbs.).
6. Remove the tape or plugs from the condenser inlet port and the discharge line fitting.
7. Lubricate a new rubber O-ring seal with clean refrigerant oil and install it on the discharge line fitting.
8. Reconnect the discharge line fitting to the condenser inlet port on the right side of the cooling module.
9. Install and tighten the nut that secures the discharge line fitting to the condenser. Tighten the nut to 23 Nm (17 ft. lbs.).
10. Position the radiator sight shield onto the radiator closure panel crossmember.
11. Install and tighten the five small screws that secure the front fascia grille inserts to the radiator sight shield. Tighten the screws to 2 Nm (18 in.
lbs.).
12. Install and tighten the two large screws that secure the front fascia and the outboard ends of the radiator sight shield to the radiator closure panel
crossmember. Tighten the screws to 6 Nm (53 in. lbs.).
13. Evacuate the refrigerant system. Refer to: "Service and Repair" See: Service and Repair
14. Charge the refrigerant system.
