Voyager L4-2.4L VIN B (2001)
6. Remove three (3) TCM-to-rail screws and remove TCM from vehicle (Fig. 16).
INSTALLATION
NOTE:
-
If transmission control module is being replaced with a new or replacement unit, the Pinion Factor and Quick Learn procedures must be
performed. (Refer to TRANSMISSION CONTROL MODULE - STANDARD PROCEDURE).
-
If TCM is replaced and vehicle has less than 2,400 km (1500 miles), the Torque Converter Clutch (TCC) Break-In Strategy reset procedure must
also be performed. (Refer to TRANSMISSION CONTROL MODULE - STANDARD PROCEDURE).

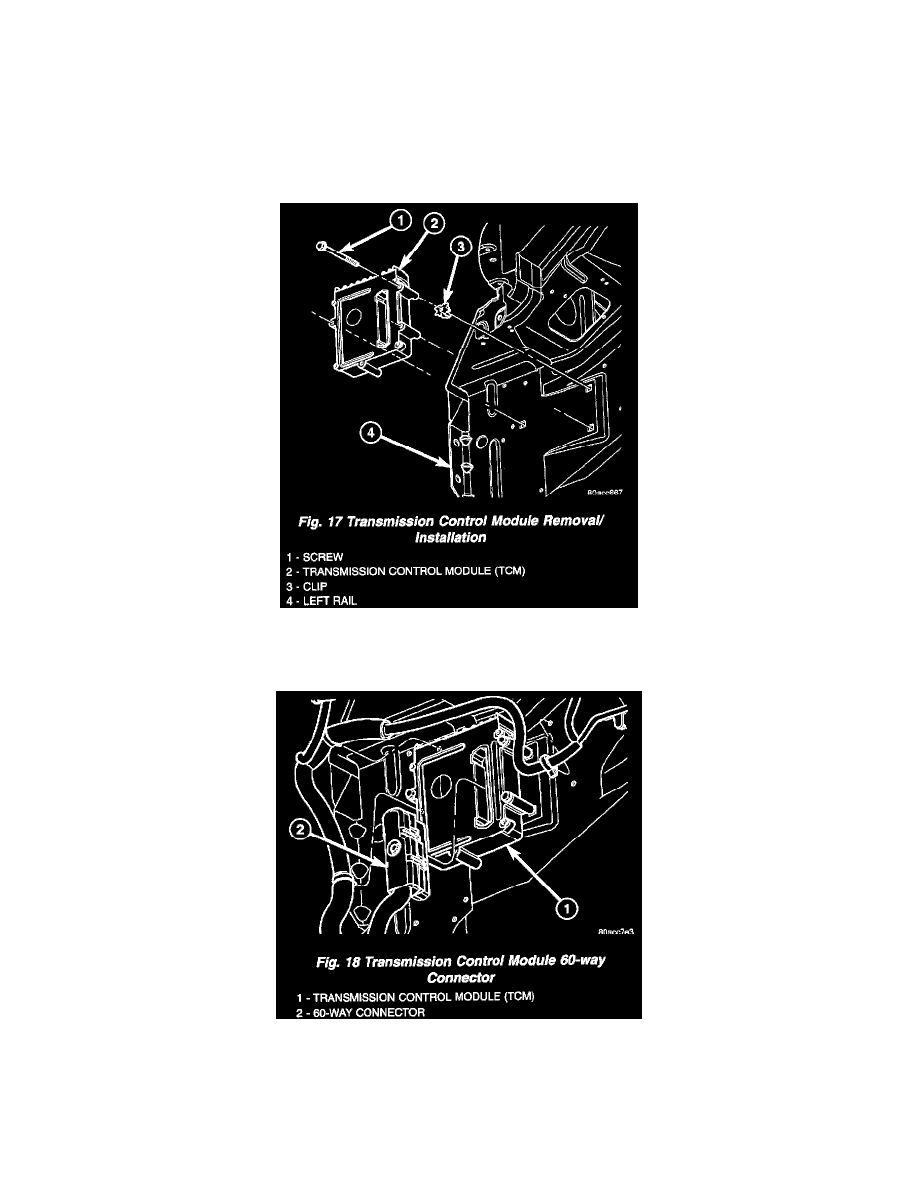

Fig.17 Transmission Control Module Removal/Installation
1. Install TCM into position (Fig. 17). Install three (3) screws and torque to 3 Nm (30 in. lbs.).
Fig.18 Transmission Control Module 60-way Connector
2. Install TCM harness 60-way connector (Fig. 18) and torque to 4 Nm (35 in. lbs.).
3. Install splash shield into position with fasteners.
4. Install left front wheel/tire assembly.
5. Lower vehicle.
