Ignition Switch: Service and Repair

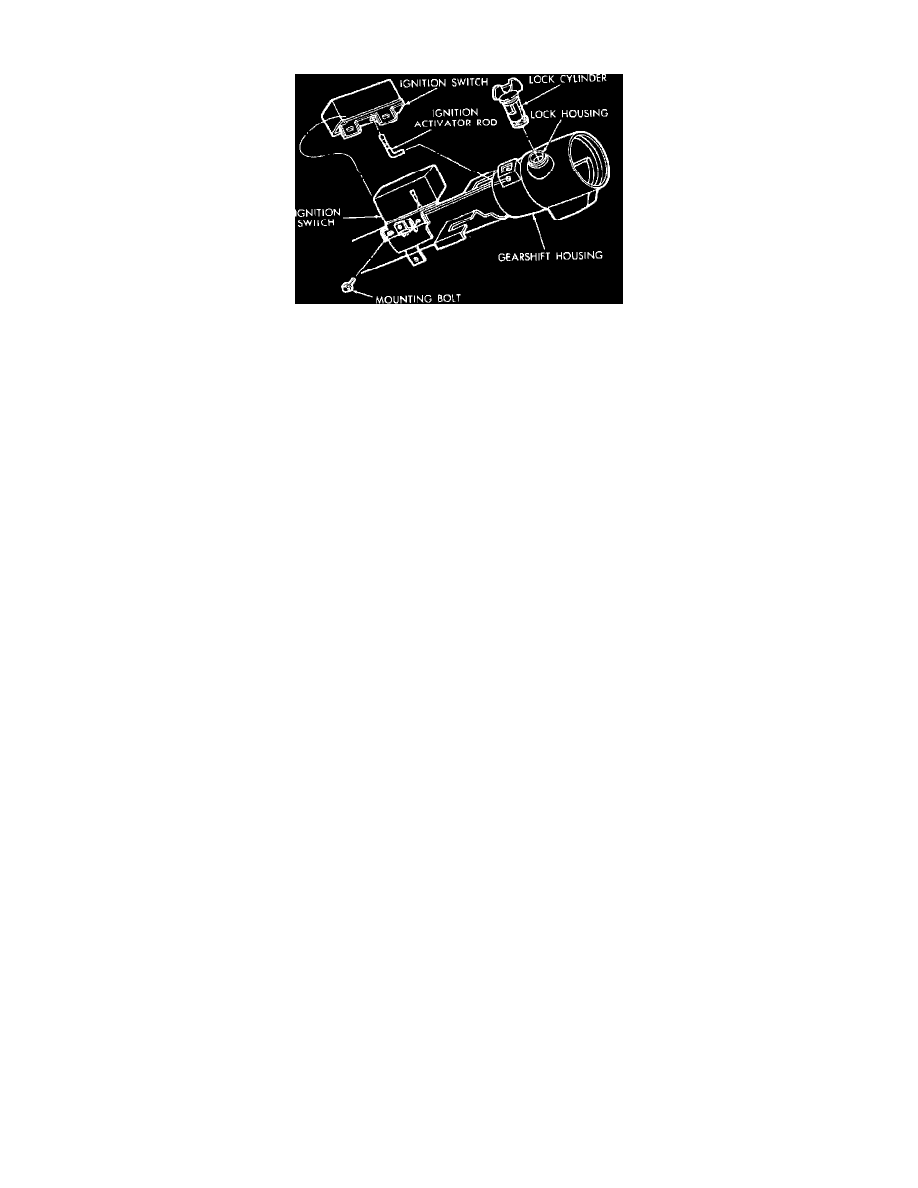

Fig. 4 Ignition switch replacement. Exc. Horizon, Omni, Charger & Turismo

EXC. HORIZON, OMNI, CHARGER & TURISMO

1.

Disconnect battery ground cable.

2.

Remove under panel sound deadener.

3.

Disconnect speed control switch.

4.

Remove two switch attaching screws, then rotate switch 90° and pull-up to disengage switch from rod.

5.

Reverse procedure to install. When installing new switch push up gently on switch relieve slack in rod system.
